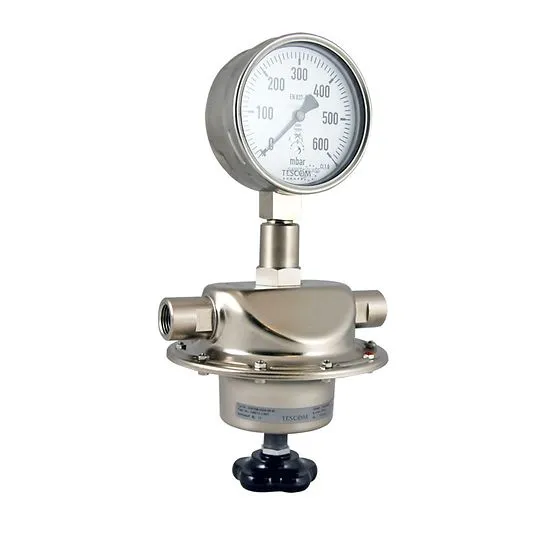

Emerson Tescom Regulus 3 Pressure Regulator Gas, Made with high-quality Brass, 0.15-1.5, 0.3-3, 1.5-15, 1.5-14.5, 2.2-21.8 inch-Hg5-50, 10-100, 50-500 mbar, 0.10-1.00, 0.15-1.5 bar, Min inlet pressure of 3.0 bar.

Brand :
Tescom

Regulus 3 in-line pressure reducer is extremely sensitive (mbar range) for gas purity up to 5.0 (99.999 Vol %) with positive shut-off seal. Ideal for use where very low outlet pressure is requested in combination with low flows, point-of-use regulator in central gas supply systems, in machines or in combination with a first-stage reducer as a cylinder pressure reducer, laboratory and production testing.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM Regulus 3 in-line pressure reducer is extremely sensitive (mbar range) for gas purity up to 5.0 (99.999 Vol %) with positive shut-off seal. Ideal for use where very low outlet pressure is requested in combination with low flows, point-of-use regulator in central gas supply systems, in machines or in combination with a first-stage reducer as a cylinder pressure reducer, laboratory and production testing. The Emerson TESCOM Regulus 3 Pressure Regulator Gas is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Precise pressure control in the mbar range • Accurate and reliable pressure control • Positive shutoff seal

Downloads

TESCOM_ Regulus 3 Pressure Regulator Gas.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
0.15-1.5, 0.3-3, 1.5-15, 1.5-14.5, 2.2-21.8 inch-Hg5-50, 10-100, 50-500 mbar, 0.10-1.00, 0.15-1.5 bar Min inlet pressure of 3.0 bar req.
Fluid Media
Non-corrosive gases, oxygen and liquid gases, recommended for gas purity up to 5.0, not suitable for acetylene
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: Nickel-plated Brass Diaphragm: NBR, wetted side PFEP coveredSeat: NBR
Operating Temperature
-4°F to 158°F / -20°C to 70°C for CO maximum 104°F / 40°C
Port Size & Type
Inlet: G 1/2 Female threadOutlet: G 1/2 Female threadGauge: G 1/2 Female thread
Weight
2.9 lbs / 1.3 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
