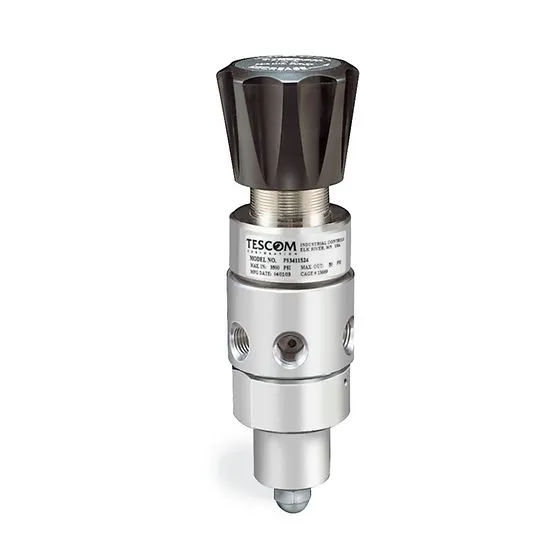

Emerson Tescom PS-3400 Series Two Stage Regulator, Made with durable 316 Stainless Steel

Brand :
Tescom

PS-3400 Series is a compact high purity two-stage cylinder regulator with tied diaphragms for low flows of toxic, flammable and pyrophoric gases. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM PS-3400 Series is a compact high purity two-stage cylinder regulator with tied diaphragms for low flows of toxic, flammable and pyrophoric gases. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. The Emerson TESCOM PS-3400 Series Two Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Excellent decaying inlet characteristic: 0.06, 100 psig / 0.004, 6.9 bar inlet change • Positive seal design • Captured bonnet ports • Both diaphragms are convoluted for greater accuracy and sensitivity • Metal-to-metal diaphragm to body seal to minimize diffusion • Diaphragm-to-valve link enhances seat sealing integrity

Downloads

TESCOM_ PS_3400 Series Two Stage Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body, Bonnet, Diaphragm: 316 Stainless Steel Seat: CTFE (1st stage), PFA (2nd stage)Friction Sleeves Outer: 316 Stainless Steel Inner: PTFE Remaining Parts: 316 Stainless Steel
Operating Temperature
-40°F to 165°F / -40°C to 60°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.05
Weight (without gauges)
3 lbs / 1.4 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
