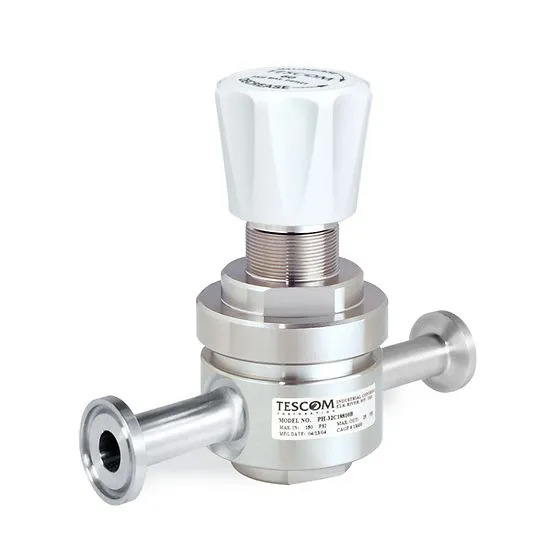

Emerson Tescom PH3200 Single Stage Gas Regulator, Made with durable 316 Stainless Steel

Brand :
Tescom

PH-3200 Series is part of our Pharmpure product line. This high purity high flow single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for biotech and pharmaceutical applications. This regulator offers gas flows of 5-50 SCFM / 142-1416 SLPM. Diffusion-resistant metal-to-metal diaphragm seal ensures gas purity and integrity. Ideal for use in sparge gases, clean steam for sanitization, and transfer panels.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM PH-3200 Series is part of our Pharmpure product line. This high purity high flow single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for biotech and pharmaceutical applications. This regulator offers gas flows of 5-50 SCFM / 142-1416 SLPM. Diffusion-resistant metal-to-metal diaphragm seal ensures gas purity and integrity. Ideal for use in sparge gases, clean steam for sanitization, and transfer panels. The Emerson TESCOM PH3200 Single Stage Gas Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• 316L Stainless Steel barstock regulator body design • FDA/USP compliant designs are available • Clean Service Certification of Compliance is available: Includes actual material certification, weld records, and bill of materials • 15 or 32 Ra microinch / 0.38 or 0.81 micrometer body surface finish standard • Precise pressure control • Gauge port is available • ASME BPE 2009 compliant design

Downloads

TESCOM_ PH3200 Single Stage Gas Regulator_datasheet_1.pdf

pdf
Download

TESCOM_ PH3200 Single Stage Gas Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316L Stainless Steel Seat: Teflon , PEEK-OPTIMA or PEEK-Classix O-Ring: Ethylene Propylene Seat Retainer: Nitronic 60
Diaphragm, Remaining Parts
316 Stainless Steel
Operating Temperature (Media Only)
Teflon Seat: -40°F to 165°F / -40°C to 74°C PEEK-OPTIMA or PEEK-Classix Seat: -40°F to 400°F / -40°C to 204°C
Port Size & Type
Inlet & Outlet Port Type: Sanitary, Tube Inlet & Outlet Port Size: 1/2, 3/4
Flow Capacity
Cv = 1.8, 1.0
Load Type
Spring
Weight (approximately)
3.5 lbs / 1.6 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
