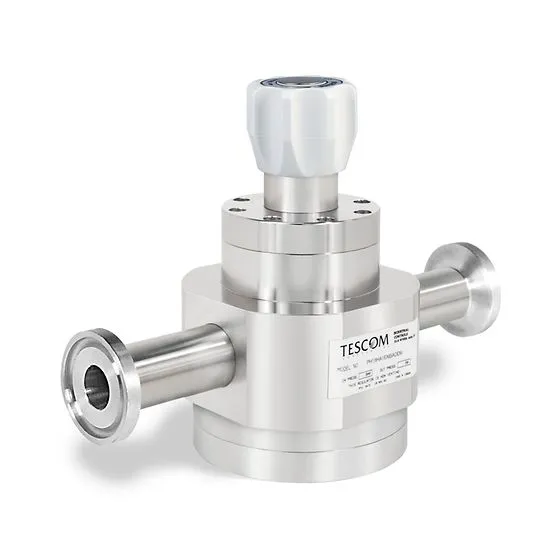

Emerson Tescom PH1800 Series Single Stage Regulator, Made with durable 316 Stainless Steel

Brand :
Tescom

PH-1800 Series is part of our Pharmpure product line. This high purity, high-flow single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for biotech and pharmaceutical applications. This regulator offers gas flows of 5-2000 SCFM / 142-56,634 SLPM. Its Gylon diaphragm ensures gas purity and integrity. Ideal for use in clean steam for sanitization and vessel headspace pressurization.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM PH-1800 Series is part of our Pharmpure product line. This high purity, high-flow single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for biotech and pharmaceutical applications. This regulator offers gas flows of 5-2000 SCFM / 142-56,634 SLPM. Its Gylon diaphragm ensures gas purity and integrity. Ideal for use in clean steam for sanitization and vessel headspace pressurization. The Emerson TESCOM PH1800 Series Single Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Flow capacity Cv = 10.0 • Gylon  diaphragm • Low droop, high-flow • Five outlet pressure ranges • Accurately regulates pressures up to 250 psig / 17.2 bar • Welded sanitary connections and tube stubs are available • Soft goods are USP Class VI compliant • ASME BPE 2009 compliant design

Downloads

TESCOM_ PH1800 Series Single Stage Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316L Stainless Steel Diaphragm: Gylon Seat, Valve: Ethylene Propylene O-Rings: Ethylene PropyleneValve Spring: Elgiloy Remaining Parts: 316 Stainless Steel
Operating Temperature
-20°F to 300°F / -28°C to 148°C
Port Size & Type
3/4 Sanitary11, 1-1/2 Sanitary3/4 Tube11, 1-1/2 Tube1/4 HPIC1 Port size limits regulator to Cv = 6.5
Flow Capacity
Cv = 10.0
Load Type
Spring, Dome
Weight (approximately)
35 lbs / 15.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
