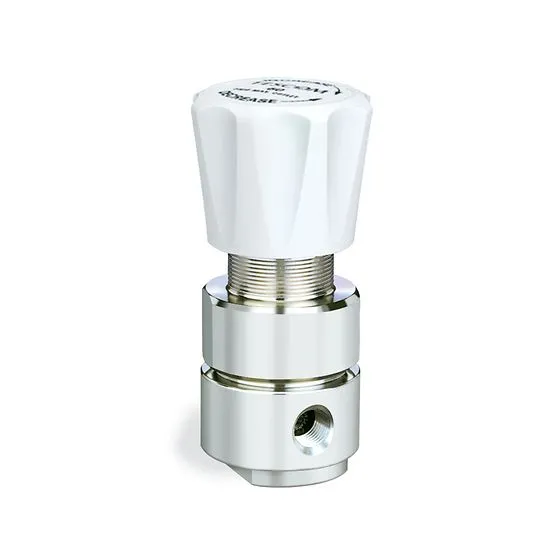

Emerson Tescom PH-2200 Single Stage Regulator, Made with durable Stainless Steel, Spring (handknob), 0-10, 0-25, 0-50, and 0-100 psig / 0-0.69, 0-1.7, 0-3.4, and 0-6.9 bar Spring Bias and Dome: 0-100 psig / 0-6.9 bar

Brand :
Tescom

PH-2200 Series is part of our Pharmpure product line. This high purity single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for specialty, corrosive, and pyrophoric gases of < 5 SCFM / 142 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in sparge gases, clean steam for sanitization, transfer panels and low flow specialty gas.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM PH-2200 Series is part of our Pharmpure product line. This high purity single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for specialty, corrosive, and pyrophoric gases of < 5 SCFM / 142 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in sparge gases, clean steam for sanitization, transfer panels and low flow specialty gas. The Emerson TESCOM PH-2200 Single Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• 316L Stainless Steel barstock regulator body design • FDA/USP compliant designs are available • Clean Service Certification of Compliance is available: Includes actual material certification, weld records, and bill of materials • 15 or 32 Ra microinch / 0.38 or 0.81 micrometer body surface finish is standard • Precise pressure control • Gauge port is available • ASME BPE 2009 compliant design

Downloads

TESCOM_ PH_2200 Single Stage Regulator_datasheet_2.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
Spring (handknob): 0-10, 0-25, 0-50, and 0-100 psig / 0-0.69, 0-1.7, 0-3.4, and 0-6.9 bar Spring Bias and Dome: 0-100 psig / 0-6.9 bar (See Part Number Selector for more details)
Body Material
316L Stainless Steel
Seat Material
Teflon , PEEK-OPTIMA or PEEK-Classix
Friction Sleeve
Inner: Teflon Outer: 316 Stainless Steel
Diaphragm & Valve Guide
316 Stainless Steel
Seat Retainer
Nitronic 60
Remaining Parts
316 Stainless Steel
Operating Temperature (Media Only)
Teflon Seat: -40°F to 165°F / -40°C to 74°CPEEK-OPTIMA or PEEK-Classix Seat: -40°F to 400°F / -40°C to 204°C
Port Size & Type
Inlet & Outlet Port Type: Sanitary, TubeInlet & Outlet Port Size: 3/8 (Tube Only), 1/2
Flow Capacity
Cv = 0.06, 0.15, and 0.24
Load Type
Spring, Spring Bias, Dome
Weight (approximate)
2.0 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
