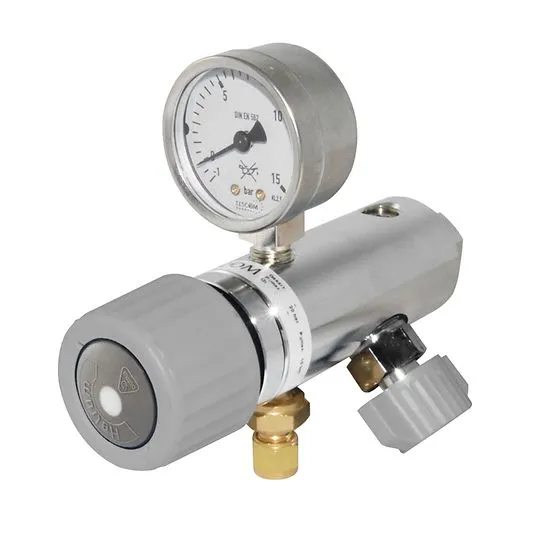

Emerson Tescom MiniLabo2 Point Of Use Regulator, Made with durable 316 Stainless Steel, 10-8 mbar l/s He

Brand :
Tescom

MiniLabo 2 Point-of-Use regulator for non-corrosive / corrosive gases and mixtures up to 6.0 (99.9999 Vol %) purity with a compact, modular and ergonomic design. Ideal for use in reduction of line pressure to working pressure, laboratory, R & D and analyzer applications and suitable for ECD (Electronic Capture Detector) applications.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM MiniLabo 2 Point-of-Use regulator for non-corrosive / corrosive gases and mixtures up to 6.0 (99.9999 Vol %) purity with a compact, modular and ergonomic design. Ideal for use in reduction of line pressure to working pressure, laboratory, R & D and analyzer applications and suitable for ECD (Electronic Capture Detector) applications. The Emerson TESCOM MiniLabo2 Point Of Use Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Clear indication of open/closed position (90°) of shut-off valve • Minimal space for installation required because pressure regulator and shut-off valve are integrated in one body • Reduced internal volume, short purging times • Modular design featuring a pressure regulator, gauge, 1/4 turn shut-off valve and metering valve • Easy installation due to wall mounting plate

Downloads

TESCOM_ MiniLabo2 Point Of Use Regulator_datasheet_2.pdf

pdf
Download

Specifications

Fluid Media
Non-corrosive / corrosive gases and mixtures up to 6.0 (99.9999 Vol%) purity
Leak Rate
10-8 mbar l/s He
Nominal Flow Rate
100 LPM based on Nitrogen
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316L Stainless Steel or Chrome-plated brassDiaphragm: Elgiloy or Hastelloy
Weight (approximate)
Brass: 1.5 lbs / 0.7 kgStainless Steel: 2.6 lbs / 1.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
