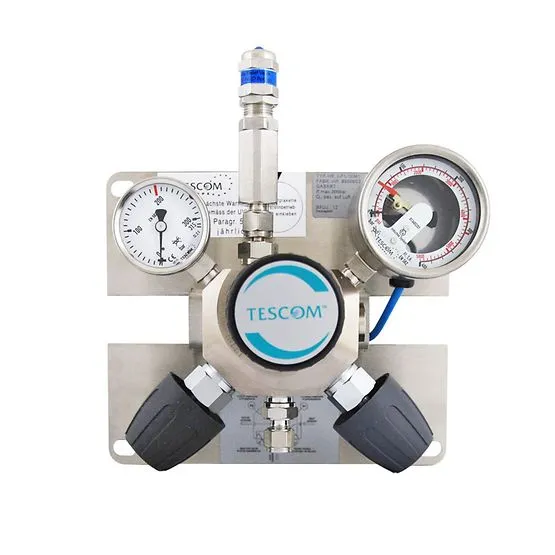

Emerson Tescom High Pressure Panel Regulator, Made with durable Stainless Steel, Maximum Inlet Pressure: 2900 psig / 200 bar4350 psig / 300 bar, Outlet Pressure Range 2175 psig / 150 bar

Brand :
Tescom

High Pressure Panel is a central gas supply unit for the pressure control of analytical gases in laboratory facilities. The use of contact gauges allows the monitoring of the filling pressure of gas cylinders. This product is ideal for high pressure central gas supply for the distribution of gases in laboratory applications and suitable for ECD (Electronic Capture Detector) applications.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM High Pressure Panel is a central gas supply unit for the pressure control of analytical gases in laboratory facilities. The use of contact gauges allows the monitoring of the filling pressure of gas cylinders. This product is ideal for high pressure central gas supply for the distribution of gases in laboratory applications and suitable for ECD (Electronic Capture Detector) applications. The Emerson TESCOM High Pressure Panel Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• For very high work pressures up to 2175 psig / 150 bar • Inlet section with purge valve, purging with process or inert gas • Easy to use and safe operation (includes relief valve) • Few connections and minimized internal volume due to the integrated design of valves and pressure regulators in one body • Quick and simple installation • Small dimensions • Stainless Steel mounting plate for corrosive environment • High pressure, explosion proof contact gauge is available

Downloads

catalog-high-pressure-panel-regulator-tescom-en-5386170.pdf

pdf
Download

Specifications

Pressure rating
Maximum Inlet Pressure: 2900 psig / 200 bar4350 psig / 300 bar Outlet Pressure Range2175 psig / 150 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Chrome plated Brass or Stainless Steel
Operating Temperature
-4°F to 158°F / -20°C to 70°C
Flow Capacity
Cv = 0.06
Weight
9.26 lbs / 4.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
