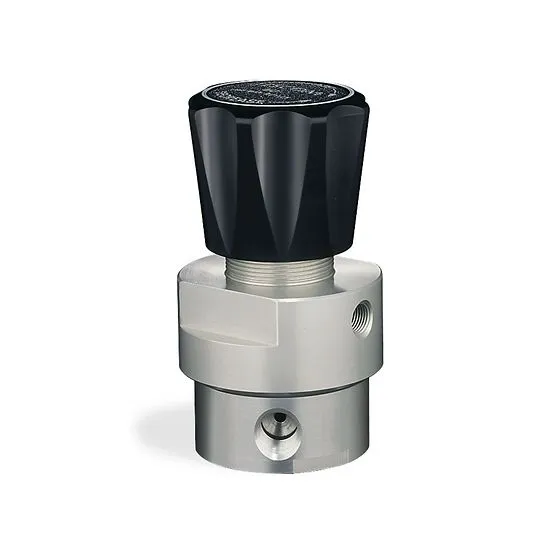

Emerson Tescom DV Diaphragm Regulator, Made with high-quality Brass or Nickel-plated Aluminum

Brand :
Tescom

DV Series is a compact, lightweight, diaphragm regulator that offers vacuum control up to 0.1% accuracy. Optional constant bleed feature allows for pressure adjustment in both directions. Ideal for use in instrumentation testing and calibration equipment.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM DV Series is a compact, lightweight, diaphragm regulator that offers vacuum control up to 0.1% accuracy. Optional constant bleed feature allows for pressure adjustment in both directions. Ideal for use in instrumentation testing and calibration equipment. The Emerson TESCOM DV Diaphragm Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Controls sub-atmospheric pressure • Excellent repeatability • Accurate diaphragm-type regulation ± 0.1% full scale accuracy • High sensitivity of 10 mm Hg absolute achieved with constant bleed option • Easy maintenance • Low operating handknob torque • Captured bonnet and panel mounting options are available

Downloads

TESCOM_ DV Diaphragm Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: Brass or Nickel-plated Aluminum Diaphragm: Buna-N, Ethylene Propylene, Viton O-Ring: Buna-N, Ethylene Propylene, Viton
Remaining Parts
300 Series Stainless Steel & Brass
Operating Temperature
Buna-N: -40°F to 165°F / -40°C to 74°CEthylene Propylene: -40°F to 250°F / -40°C to 121°CViton : -15°F to 165°F / -26°C to 74°C
Port Size & Type
1/4 SAE, NPTF, MS336491/8 NPTF
Flow Capacity
Cv = 0.25
Load Type: Standard Vacuum NO BLEED
Handknob adjustScrewdriver adjustCaptured bonnet Hand adjustCaptured bonnet Screw adjustDome loaded
Load Type: Standard Vacuum CONSTANT BLEED
Handknob adjustScrewdriver adjustCaptured bonnet Hand adjustCaptured bonnet Screw adjust
Weight
Brass: 2.4 lbs / 1.1 kgAluminum: 1 lb / 0.5 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
