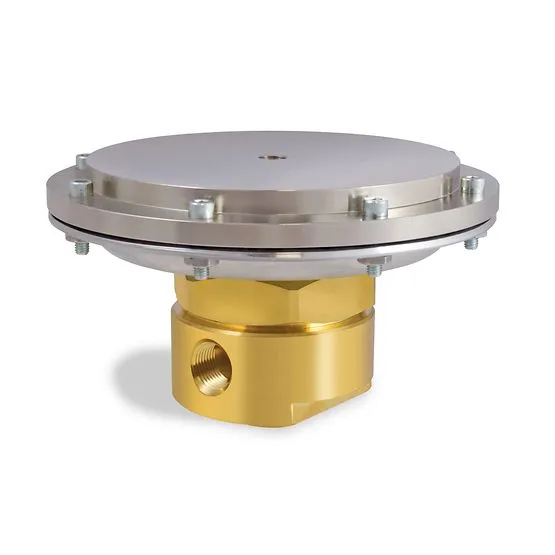

Emerson Tescom DK Series Pressure Control Regulator, Made with durable Brass & 316 Stainless Steel

Brand :
Tescom

DK Series regulator improves control and resolution at medium flow and pressures. The DK can be paired up with the 26-1600 regulator for remote control capability or combined with the ER5000 for remote automated and precise pressure control to ±0.1%. Ideal for use in component testing and development, flow meter calibration, burst and proof testing, superplastic metal forming, vacuum forming, catheter testing or rapture disk testing, sensor and gauge calibration and test. Suitable for coating applications.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM DK Series regulator improves control and resolution at medium flow and pressures. The DK can be paired up with the 26-1600 regulator for remote control capability or combined with the ER5000 for remote automated and precise pressure control to ±0.1%. Ideal for use in component testing and development, flow meter calibration, burst and proof testing, superplastic metal forming, vacuum forming, catheter testing or rapture disk testing, sensor and gauge calibration and test. Suitable for coating applications. The Emerson TESCOM DK Series Pressure Control Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Segregated and captured venting • High flow capacity

Downloads

TESCOM_ DK Series Pressure Control Regulator_datasheet_2.pdf

pdf
Download

Specifications

Body, Bonnet, Back-cap Ring
Brass, 316 Stainless Steel
Diaphragm & O-Rings
Buna-N, Ethylene Propylene, Viton
Seat, Main Valve
CTFE, Teflon , Vespel
40 Micron Filter Material
Sintered Brass, 316 Stainless Steel
Remaining Parts
300 Series Stainless Steel, Brass
Operating Temperature
-15°F to 165°F / -2°C to 74°C
Port Size & Type
1/4, 3/8, 1/2 SAE1/4, 3/8, 1/2 NPTF
Flow Capacity
Cv = 0.35
Load Type
Dome, Air
Weight
Dome Load: 3.5 lbs / 1.6 kg Air Load: 5.5 lbs / 2.5 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
