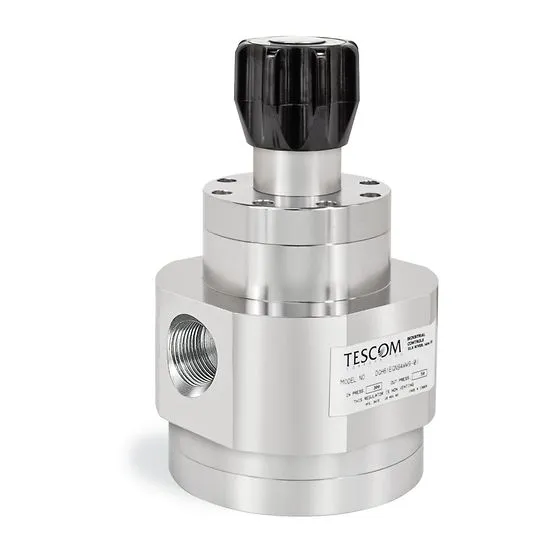

Emerson Tescom DG Series Single Stage Regulator, Made with durable Stainless Steel, 0-20, 0-50, 0-100, 0-150 nd 0-250 psig / 0-1.4, 0-3.4, 0-6.9, 0-10.3 and 0-17.2 bar (0-300 psig / 0-20.7 bar dome load only)

Brand :
Tescom

DG Series single-stage regulator provides a compact size with high flow capability greater than 1000 SCFM / 28,300 SLPM. The large diaphragm and balanced main valve design provide lower droop (larger usable flow range) than competitive designs. Available in spring or dome loaded configurations. Ideal for use in purging, blanketing, high flow inerting, heat-treating and shielding gases and performs well at very low pressure differentials such as Dewar-supplied processes. Suitable for multi-drop breathing air stations.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM DG Series single-stage regulator provides a compact size with high flow capability greater than 1000 SCFM / 28,300 SLPM. The large diaphragm and balanced main valve design provide lower droop (larger usable flow range) than competitive designs. Available in spring or dome loaded configurations. Ideal for use in purging, blanketing, high flow inerting, heat-treating and shielding gases and performs well at very low pressure differentials such as Dewar-supplied processes. Suitable for multi-drop breathing air stations. The Emerson TESCOM DG Series Single Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Cv = 10 in a compact design • Diaphragm sensing provides greater accuracy and sensitivity • Available in spring or dome loaded configurations. • Dome/air actuated compatible with TESCOM ER5000 Electropneumatic Controllers

Downloads

TESCOM_ DG Series Single Stage Regulator_datasheet_2.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
0-20, 0-50, 0-100, 0-150 nd 0-250 psig / 0-1.4, 0-3.4, 0-6.9, 0-10.3 and 0-17.2 bar(0-300 psig / 0-20.7 bar dome load only)
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body, Bonnet, Back-cap: 316 Stainless Steel Main Valve Seat: Buna-N 90, Ethylene Propylene 80, Chemraz 75 or Viton Diaphragm: Gylon
O-Rings
Buna-N, Ethylene Propylene 80, Chemraz 75 or Viton
Remaining Parts
300 Series Stainless Steel, Nitronic 60
Operating Temperature
-10°F to 165°F / -23°C to 74°C
Port Size & Type
1, 1 1/2 NPTF
Flow Capacity
Cv = 10
Load Type
Spring, Dome, Air (optional)
Weight
35 lbs / 15.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
