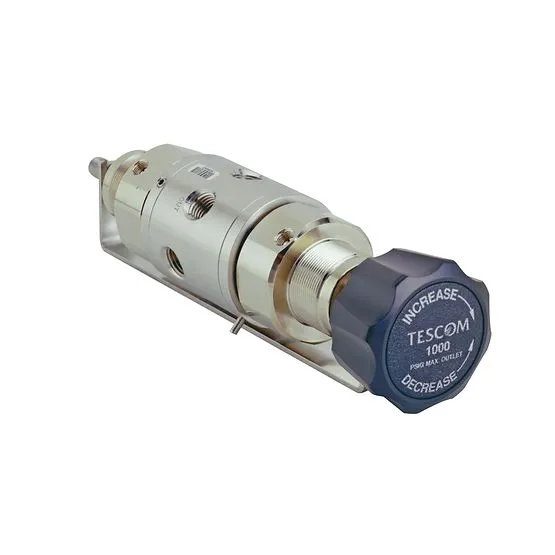

Emerson Tescom CR441800 Series Changeover Pressure Regulator, Made with durable Stainless Steel, Seven maximum delivery pressures from 500 to 2000 psig / 34.5 to 138 bar

Brand :
Tescom

CR441800Series is a compact, high pressure changeover system which combines the changeover regulator and a line regulator into a compact wall mount system for general purpose and industrial gases. It provides continuous low flow of gas from two high pressure sources. Ideal for use in analyzer carrier gas and laser resonator gas applications.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM CR441800Series is a compact, high pressure changeover system which combines the changeover regulator and a line regulator into a compact wall mount system for general purpose and industrial gases. It provides continuous low flow of gas from two high pressure sources. Ideal for use in analyzer carrier gas and laser resonator gas applications. The Emerson TESCOM CR441800 Series Changeover Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Maximum inlet pressure: 3500 or 6000 psig / 241 or 414 bar • Seven maximum delivery pressures from 500 to 2000 psig / 34.5 to 138 bar • Designed to provide a continuous flow of gas for applications requiring stored gas supplies • Available in 316 Stainless Steel or Brass • Based on TESCOM's field-proven 44-1800 regulator

Downloads

TESCOM_ CR441800 Series Changeover Pressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Maximum Delivery Pressure
Seven maximum delivery pressures from 500 to 2000 psig / 34.5 to 138 bar
Materials
Body: Brass, 316 Stainless Steel, or Nickel-plated Brass Bonnet: 300 Series Stainless Steel, Brass, or Nickel-plated Brass Valve Seat: Vespel O-Ring: FKM
Remaining Parts
Brass and 300 Series Stainless Steel
Operating Temperature
-15°F to 165°F / -26°C to 74°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.06
Weight
3 lbs / 1.4 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
