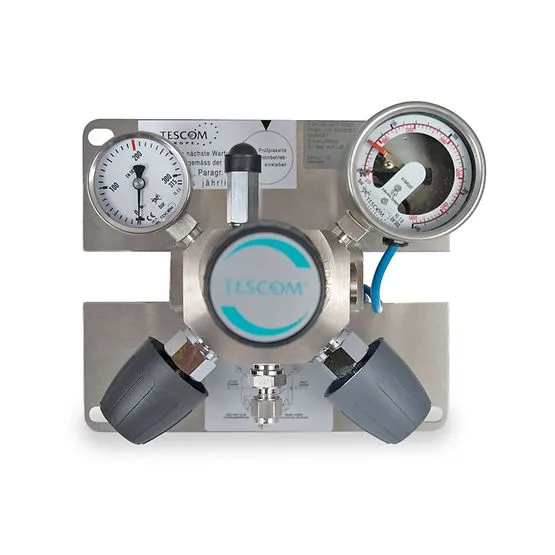

Emerson Tescom Compact Panel Presssure Regulator, Made with durable Stainless Steel, Maximum Inlet Pressure: 4350 psig / 300 bar, Outlet Pressure Ranges: 0-145 psig / 0-10 bar  0-290 psig / 0-20 bar

Brand :
Tescom

Compact Panel is a central gas supply unit for the pressure control of analytical gases in laboratory facilities. Depending on the requirements, these units switch over to a spare cylinder in order to enable a continuous gas supply. The use of contact gauges allows the monitoring of empty gas cylinders. This product is suitable for central gas supply for the distribution of gases in laboratory applications. Ideal for supply of gases for laser cutting applications and various other processes requiring continuous gas supply.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM Compact Panel is a central gas supply unit for the pressure control of analytical gases in laboratory facilities. Depending on the requirements, these units switch over to a spare cylinder in order to enable a continuous gas supply. The use of contact gauges allows the monitoring of empty gas cylinders. This product is suitable for central gas supply for the distribution of gases in laboratory applications. Ideal for supply of gases for laser cutting applications and various other processes requiring continuous gas supply. The Emerson TESCOM Compact Panel Presssure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Few connections and minimized internal volume due to the integration of valves and pressure regulator in one body • Suitable for ECD (Electron Capture Detector) applications • Short purging time when changing cylinders • Purging with process or inert gas • Easy and quick to maintain - a P & ID is located on front of the panel • Stainless Steel mounting plate for corrosive environments • Very compact design (fits into most gas cabinets) • All versions contain a filter element in the inlet

Downloads

catalog-compact-panel-pressure-regulator-tescom-en-5387992.pdf

pdf
Download

Specifications

Pressure rating
Maximum Inlet Pressure: 4350 psig / 300 barOutlet Pressure Ranges: 0-145 psig / 0-10 bar  0-290 psig / 0-20 bar
Leak Rate
10-7 mbar l/s He
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel or Nickel-plated Brass Diaphragm: 316L Stainless Steel
Operating Temperature
-4°F to 158°F / -20°C to 70°C
Nominal Flow Rate
10 m3/h based on Nitrogen, Cv = 0.06
Cleaning
Cleaned for Oxygen Service.
Inlet Port Type and Size
G 3/8 femaleCompression fitting 6 mm
Outlet Port Type and Size
Process outlet: G 1/4  Purge Gas: G 1/4  Relief Valve: M 12x1
Weight
17.6 lbs / 7.9 kg for 2x1 cylinder8.1 lbs / 3.7 kg for 1 cylinder
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
