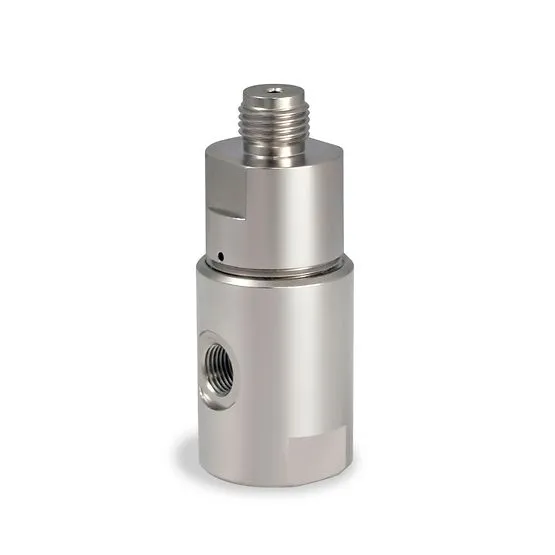

Emerson Tescom BE Series Two Stage Pressure Regulator, Brass, Nickel-plated Aluminum or 316 Stainless Steel Body

Brand :
Tescom

BE Series regulator functions alone, as a pilot source or can be used to convert most low pressure regulators into a two-stage pressure reducer. Ideal for use in rough cut regulator, can be combined with a one-stage regulator to create a two-stage regulator, tee-ed in for a pilot source and non-venting.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

Emerson TESCOM BE Series regulator functions alone, as a pilot source or can be used to convert most low pressure regulators into a two-stage pressure reducer. Ideal for use in rough cut regulator, can be combined with a one-stage regulator to create a two-stage regulator, tee-ed in for a pilot source and non-venting. The Emerson TESCOM BE Series Two Stage Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Material: Nickel-plated Aluminum, Brass, and 316 Stainless Steel • Positive shutoff for leak integrity • Reverse decaying inlet characteristic for sensitive equipment applications • Preset at factory for a set of standard operating conditions • Low flow applications: Cv = 0.02 • 6000 psig / 414 bar inlet, 0-450 psig / 0-31 bar outlet • Various porting configurations for gauges and relief valves

Downloads

TESCOM_ BE Series Two Stage Pressure Regulator_datasheet_2.pdf

pdf

Specifications

Body Material
Brass, Nickel-plated Aluminum, 316 Stainless Steel
Piston Material
Brass (Brass and Aluminum bodies only)316 Stainless Steel (316 Stainless Steel bodies only)
Seat Material
PTFE, CTFE, Polyimide
O-Rings
Buna-N, Viton , Ethylene Propylene (E.P.), Urethane
Filter Material
Bronze, Stainless Steel
Operating Temperature
See Part Number Selector
Port Size & Type
1/8 Female NPTF, 1/4 Female NPTF, 1/8 Male NPTF, 1/4 Male NPTF, 1/8 Female SAE, 1/4 Female SAE, 1/8 Male SAE, 1/4 Male SAE
Flow Capacity
Cv = 0.02
Weight
0.5 lbs / 0.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
