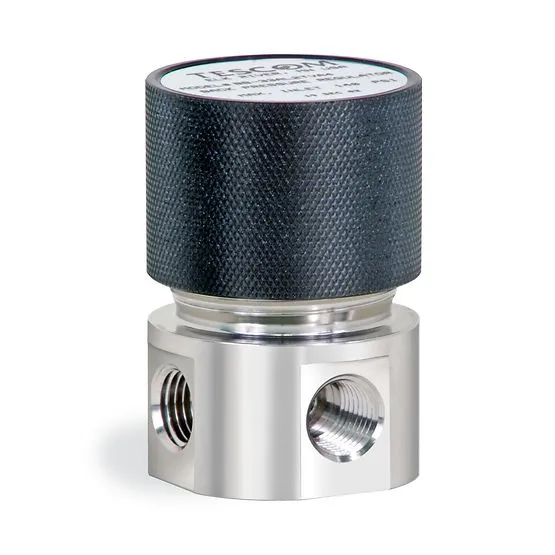

Emerson Tescom BB1 Series Pressure Regulator OEM, Aluminum 6061 Body & Stainless Steel Construction

Brand :
Tescom

BB-1 Series high pressure, low flow, miniature pressure reducing regulator provides six outlet pressure ranges available up to 1800 psig / 124 bar outlet. This non-venting regulator is small and compact, weighing approximately 0.5 lbs / 0.2 kg in the standard aluminum construction. Ideal for use in portable equipment.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM BB-1 Series high pressure, low flow, miniature pressure reducing regulator provides six outlet pressure ranges available up to 1800 psig / 124 bar outlet. This non-venting regulator is small and compact, weighing approximately 0.5 lbs / 0.2 kg in the standard aluminum construction. Ideal for use in portable equipment. The Emerson TESCOM BB1 Series Pressure Regulator OEM is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Durable piston-sensed design • Outlet pressure ranges are field adjustable • Two and four 1/4"" NPTF or SAE ports are standard • Minimal soft goods • Non-venting • Two-stage and cartridge versions are available • 316 Stainless Steel construction is available

Downloads

TESCOM_ BB1 Series Pressure Regulator OEM_datasheet_1.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: Aluminum 6061 (Nickel-plated)Seat: CTFE, PEEK, or Vespel O-Rings: See Part Number Selector Remaining Parts: 300 Series Stainless Steel or Aluminum
Operating Temperature
-15°F to 165°F / -26°C to 74°C-65°F to 165°F / -54°C to 74°C with Buna-N O-RingsUp to 400°F / 204°C with Vespel or PEEK Seat
Port Size & Type
1/4 NPTF or SAE
Flow Capacity
Cv = 0.06
Load Type
Spring
Weight (approximate)
0.5 lbs / 0.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
