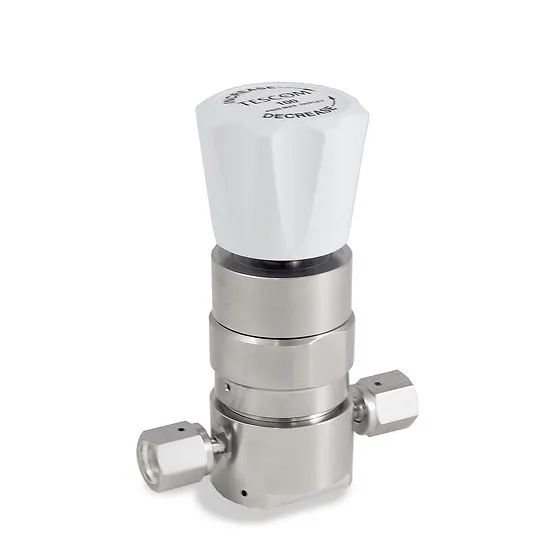

Emerson Tescom 74-2400 Series Springless Threadless Pressure Regulator, Made with 316 Stainless Steel

Brand :
Tescom

74-2400 Series ultra high purity, tied diaphragm pressure reducing regulator provides low internal volume and an internally springless and threadless design. The 74-2400 Series offers a 10 Ra surface finish and 316 Stainless Steel VAR. Inlet pressures are 600 or 3500 psig / 41.3 or 241 bar with outlet pressures up to 100 psig / 6.9 bar. Ideal for use in 1/4" point-of-use, gas cabinets, semiconductor manufacturing, valve manifold boxes and research labs.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 74-2400 Series ultra high purity, tied diaphragm pressure reducing regulator provides low internal volume and an internally springless and threadless design. The 74-2400 Series offers a 10 Ra surface finish and 316 Stainless Steel VAR. Inlet pressures are 600 or 3500 psig / 41.3 or 241 bar with outlet pressures up to 100 psig / 6.9 bar. Ideal for use in 1/4" point-of-use, gas cabinets, semiconductor manufacturing, valve manifold boxes and research labs. The Emerson TESCOM 74-2400 Series Springless Threadless Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Manufactured and tested using Total Quality tools including Statistical Process Control • No internal springs and a low internal volume minimizes particle entrapment • Metal-to-metal seal at diaphragm or body interface • 10 Ra microinch / 0.25 micrometer finish is available

Downloads

TESCOM_ 74_2400 Series Springless Threadless Pressure Regulator_datasheet_1.pdf

pdf

TESCOM_ 74_2400 Series Springless Threadless Pressure Regulator_datasheet_2.pdf

pdf

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316L VAR Stainless Steel Electroplish Diaphragm: 316L Stainless SteelSeat: PCTFE (Vespel optional for 3500 psig / 241 bar model)Valve Stem, Rear Seal: 316 Stainless Steel
Operating Temperature
PCTFE Seat: -40°F to 140°F / -40°C to 60°C Vespel Seat: -40°F to 350°F / -40°C to 177°C
Port Size & Type
1/4 H.P.I.C. 1/4, 1/2Male Swivel, Female Swivel1/4 Tube Stubs
Flow Capacity
Cv = 0.06 (3500 psig / 241 bar model)Cv = 0.15 (600 psig / 41.4 bar model)
Weight (withouth gauges)
2.0 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
