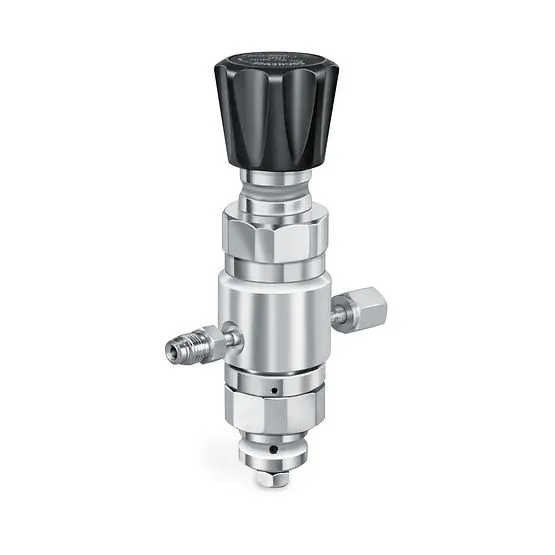

Emerson Tescom 64-3400 Series Dual Stage Regulator, Made with durable 316 Stainless Steel

Brand :
Tescom

64-3400 Series dual-stage, ultra high purity pressure reducing regulator offers a tied diaphragm design and 10 Ra microinch / 0.25 micrometer surface finish with optional Hastelloy trim. Inlet pressure is 3500 psig / 241 bar with outlet pressures up to 150 psig / 10.3 bar. Ideal for use in gas cabinets, semiconductor manufacturing and research labs.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 64-3400 Series dual-stage, ultra high purity pressure reducing regulator offers a tied diaphragm design and 10 Ra microinch / 0.25 micrometer surface finish with optional Hastelloy trim. Inlet pressure is 3500 psig / 241 bar with outlet pressures up to 150 psig / 10.3 bar. Ideal for use in gas cabinets, semiconductor manufacturing and research labs. The Emerson TESCOM 64-3400 Series Dual Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• 10 Ra microinch / 0.25 micrometer internal surfaces • Full internal Electropolish is available • Metal-to-metal body to diaphragm seal for high leak integrity • Choice of free poppet or tied diaphragm

Downloads

TESCOM_ 64_3400 Series Dual Stage Regulator_datasheet_2.pdf

pdf
Download

Specifications

Body Material
316L Stainless Steel Electropolish or 316L VAR Stainless Steel Electropolish
Diaphragm
316L Stainless Steel
Valve Seat
PCTFE or Teflon PFA
Valve Spring
316 Stainless Steel
Valve Stem & Remaining Parts
316 Stainless Steel (Hastelloy optional)
Operating Temperature
Teflon PFA Seat: -40°F to 160°F / -40°C to 71°CPCTFE Seat: -40°F to 140°F / -40°C to 60°C
Port Size & Type
1/4 H.P.I.C.1/4, 1/2Male Swivel, Fixed Male, Female Swivel1/4 Tube Stubs
Flow Capacity
See Part Number Selector
Weight
3.0 lbs / 1.4 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
