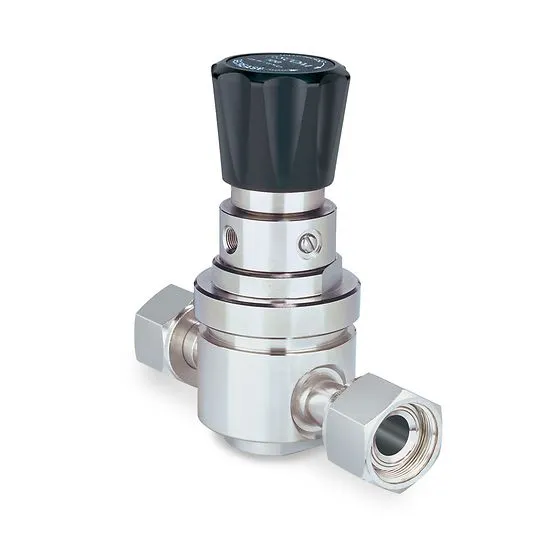

Emerson Tescom 64-3200 Series BSGS Pressure Regulator, Made with durable 316 Stainless Steel

Brand :
Tescom

64-3200 Series ultra high purity, high flow tied diaphragm pressure reducing regulator offers 10 Ra microinch / 0.25 micrometer surface finish and is available in Hastelloy trim. Maximum flow rates are up to 31.8 SCFM / 900 SLPM, with inlet pressures of 150, 1000, 1500 psig / 10.3, 69.0, 103 bar and outlet pressures up to 200 psig / 13.8 bar. Ideal for use in Bulk Specialty Gas Systems (BSGS), 1/2" point-of-use, tool hook-ups and gas cabinets.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 64-3200 Series ultra high purity, high flow tied diaphragm pressure reducing regulator offers 10 Ra microinch / 0.25 micrometer surface finish and is available in Hastelloy trim. Maximum flow rates are up to 31.8 SCFM / 900 SLPM, with inlet pressures of 150, 1000, 1500 psig / 10.3, 69.0, 103 bar and outlet pressures up to 200 psig / 13.8 bar. Ideal for use in Bulk Specialty Gas Systems (BSGS), 1/2" point-of-use, tool hook-ups and gas cabinets. The Emerson TESCOM 64-3200 Series BSGS Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Designed for high flow, bulk specialty gas • Hastelloy  trim option is available • Positive shut-off seal, tied diaphragm design • Metal-to-metal diaphragm to body seal for high leak integrity • Captured bonnet

Downloads

TESCOM_ 64_3200 Series BSGS Pressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Body Material
316L Stainless Steel Electropolish or 316L VAR Stainless Steel Electropolish
Diaphragm
Hastelloy
Seat Retainer
316 Stainless Steel
Poppet
316 Stainless Steel or Hastelloy
Valve Seat
Teflon , Vespel , PCTFE
Remaining Parts
316 Stainless Steel
Operating Temperature
Teflon Seat: -40 to 160°F / -40 to 71°CVespel Seat: -40 to 350°F / -40 to 177°CPCTFE Seat: -40 to 140°F / -40 to 60°C
Port Size & Type
1, 3/8, 3/4, 1/2 Tube Ends1/4, 1/2, 3/4Male Fixed, Male Swivel (normal and high flow), Female Swivel (normal and high flow)
Flow Capacity
Cv = 1.2
Weight (without gauges)
3.5 lbs / 1.6 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
