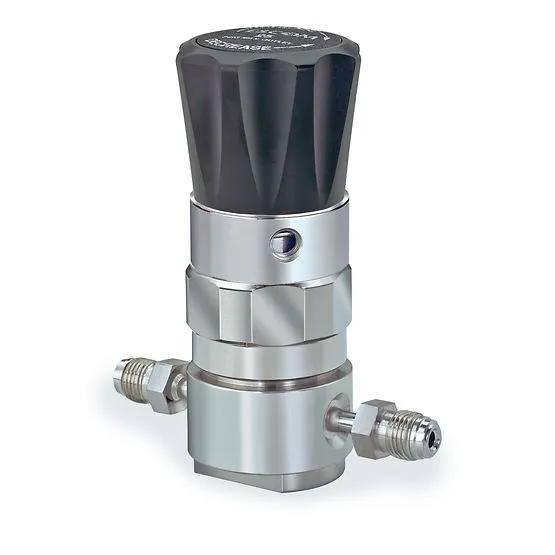

Emerson Tescom 64-2800 Pressure Regulator, Made with durable Stainless Steel, 3500 psig / 241 bar, Cv = 0.061000 psig / 69.0 bar, Cv = 0.15

Brand :
Tescom

64-2800 Series high purity, tied diaphragm pressure reducing regulator offers Stainless Steel construction with 10 Ra microinch / 0.25 micrometer surface finish and is electronic grade cleaned. Inlet pressures of 1000 or 3500 psig / 69.0 or 241 bar with outlet pressures up to 150 psig / 10.3 bar. Ideal for use in 1/4" point-of-use, gas cabinets, regulation of specialty gases, crystal growing and diffusion furnaces.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 64-2800 Series high purity, tied diaphragm pressure reducing regulator offers Stainless Steel construction with 10 Ra microinch / 0.25 micrometer surface finish and is electronic grade cleaned. Inlet pressures of 1000 or 3500 psig / 69.0 or 241 bar with outlet pressures up to 150 psig / 10.3 bar. Ideal for use in 1/4" point-of-use, gas cabinets, regulation of specialty gases, crystal growing and diffusion furnaces. The Emerson TESCOM 64-2800 Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Positive shutoff minimizes creep • Metal-to-metal diaphragm to body seal for high leak integrity • 10 Ra microinch / 0.25 micrometer internal surface finish • Hastelloy  trim is optional • Captured bonnet

Downloads

TESCOM_ 64_2800 Pressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316L Stainless Steel Electropolish or 316L VAR Stainless Steel Electropolish Valve Seat: PCTFE Diaphragm, Stem, Spring: 316 Stainless Steel, Hastelloy
Operating Temperature
PCTFE: -40°F to 140°F / -40°C to 60°CVespel : -40°F to 350°F / -40°C to 176°C
Port Size & Type
1/4 H.P.I.C. 1/4, 1/2Male Swivel, Female Swivel1/4 Tube Stubs
Flow Capacity
3500 psig / 241 bar model: Cv = 0.061000 psig / 69.0 bar model: Cv = 0.15
Weight (without gauges)
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
