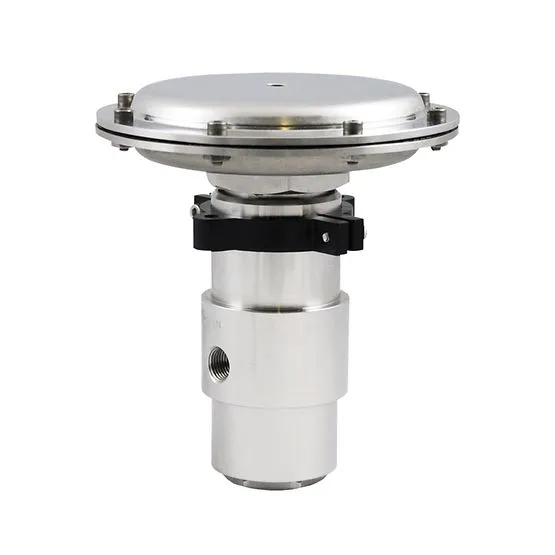

Emerson Tescom 54-3500 Two Stage Backpressure Regulator, Made with durable Stainless Steel, 1/4, 3/8 NPTF & Medium Pressure

Brand :
Tescom

54-3500 two-stage hydraulic backpressure regulator reduces the controlled inlet pressure in 2 steps. The integrated second stage is self loading and adjusts itself to 50% of the inlet pressure, regardless if the unit is spring, air or dome loaded. This reduction of differential pressure per stage significantly reduces the destructive force of erosion and cavitation. A wide range of soft goods and valve trim materials, including ceramic option, allow for media specific regulator selection. Ideal for use in high pressure hydraulic test benches and injection valve manufacturing and testing.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 54-3500 two-stage hydraulic backpressure regulator reduces the controlled inlet pressure in 2 steps. The integrated second stage is self loading and adjusts itself to 50% of the inlet pressure, regardless if the unit is spring, air or dome loaded. This reduction of differential pressure per stage significantly reduces the destructive force of erosion and cavitation. A wide range of soft goods and valve trim materials, including ceramic option, allow for media specific regulator selection. Ideal for use in high pressure hydraulic test benches and injection valve manufacturing and testing. The Emerson TESCOM 54-3500 Two Stage Backpressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Suitable for supercritical media applications and chemical injection. • Longer lifetime than single stage solutions by reduced erosion and cavitation • Lower cost of ownership • Proven TESCOM valve trim modules with many options available

Downloads

TESCOM_ 54_3500 Two Stage Backpressure Regulator_datasheet_1.pdf

pdf
Download

TESCOM_ 54_3500 Two Stage Backpressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316L Stainless Steel Bonnet: 300 Series Stainless Steel Seat: CTFE, Vespel SP-1, PEEK, 17-4 hardened Stainless Steel Remaining Parts: 300 Series Stainless Steel
Operating Temperature
-15°F to 140°F / -26°C to 60°C
Port Size & Type
1/4, 3/8NPTF & Medium Pressure
Flow Capacity
Cv = 0.08
Load Type
Air, Dome, Spring
Weight
6 lbs / 2.7 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
