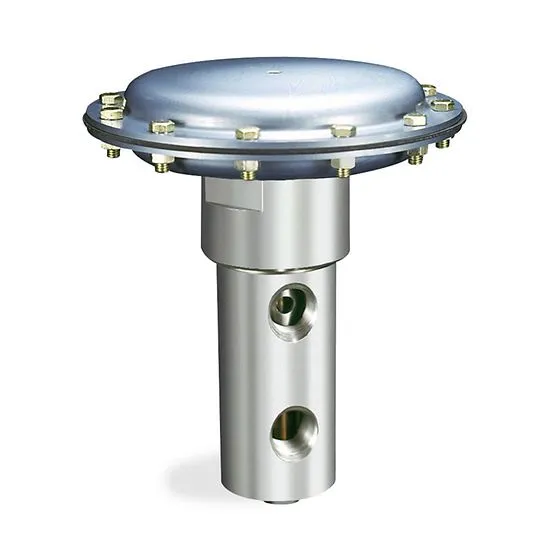

Emerson Tescom 54-2800 Series Pressure Regulator for Hydraulic Applications, Made with durable 303 Stainless Steel

Brand :
Tescom

54-2800 Series high pressure, high flow, pressure reducing regulator is designed for hydraulic applications. Inlet and outlet rated up to 5000 psig / 345 bar; Cv = 8.0 for high flows. Air operated and dome loaded versions are available. Hardened Stainless Steel seat and poppet for excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP) and hydraulic component testing.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 54-2800 Series high pressure, high flow, pressure reducing regulator is designed for hydraulic applications. Inlet and outlet rated up to 5000 psig / 345 bar; Cv = 8.0 for high flows. Air operated and dome loaded versions are available. Hardened Stainless Steel seat and poppet for excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP) and hydraulic component testing. The Emerson TESCOM 54-2800 Series Pressure Regulator for Hydraulic Applications is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• High flow and compact design • Hardened 17-4 PH Stainless Steel seat and poppet provides excellent protection against shock and erosion • Utilizes a piston style sensor, balanced main valve poppet and a non-adjustable vent

Downloads

TESCOM_ 54_2800 Series Pressure Regulator for Hydraulic Applications_datasheet_2.pdf

pdf
Download

Specifications

Body Material
303 Stainless Steel
Seat, Poppet, Sensor
17-4 PH Stainless Steel
O-Rings
Buna-N, Viton , Ethylene Propylene, Kalrez
Back-up Rings
Teflon
Remaining Parts
300 Series Stainless Steel
Operating Temperature
-0°F to 165°F / -17°C to 74°C For extended temperatures up to 350°F / 177°C, consult TESCOM
Port Size & Type
Inlet & Outlet Port Type: SAE, NPTFInlet & Outlet Port Size: 1
Flow Capacity
Main Valve: Cv = 8.0 Vent Valve: Cv = 6.5
Load Type
Dome, Air
Weight
35 lbs / 15.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
