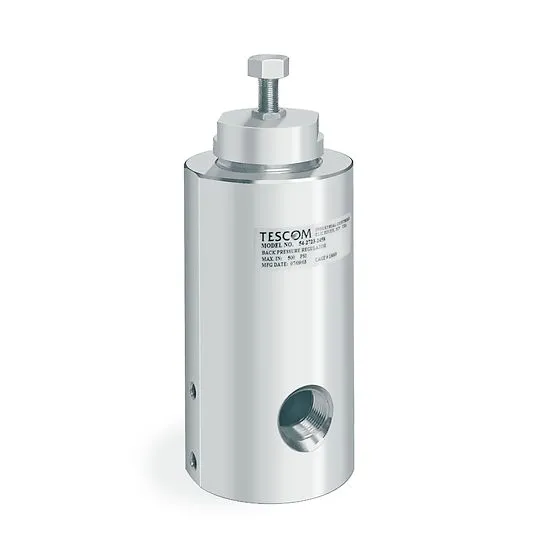

Emerson Tescom 54-2700 Series Hydraulic Backpressure Regulator, Made with durable 300/303/316 Stainless Steel

Brand :
Tescom

54-2700 Series high flow backpressure regulator. The soft seat allows for hydraulic or pneumatic service. Optional with air load for use with the ER5000 Electropneumatic Controller. Ideal for use in process control, high flow pump discharge control and hydraulic test stands.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 54-2700 Series high flow backpressure regulator. The soft seat allows for hydraulic or pneumatic service. Optional with air load for use with the ER5000 Electropneumatic Controller. Ideal for use in process control, high flow pump discharge control and hydraulic test stands. The Emerson TESCOM 54-2700 Series Hydraulic Backpressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Available in air, dome and spring loaded versions • Compatible with TESCOM ER5000 Electronic Controller air loaded only: • High flow: Cv = 5.0 • 500 or 5500 psig / 34.5 or 379 bar maximum controlled pressure range

Downloads

TESCOM_ 54_2700 Series Hydraulic Backpressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 303 and 316 Stainless Steel Seat: Glass Filled Peek, Vespel SP1O-Rings: Buna-N, Viton , Ethylene Propylene Back-up Rings: Teflon
Remaining Parts
303 Stainless Steel
Operating Temperature
-40°F to 165°F / -40°C to 74°C
Port Size & Type
1SAE, NPTF, MS33649
Flow Capacity
Cv = 5.0
Load Type
Air, Dome, Spring
Weight
30 lbs / 13.6 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
