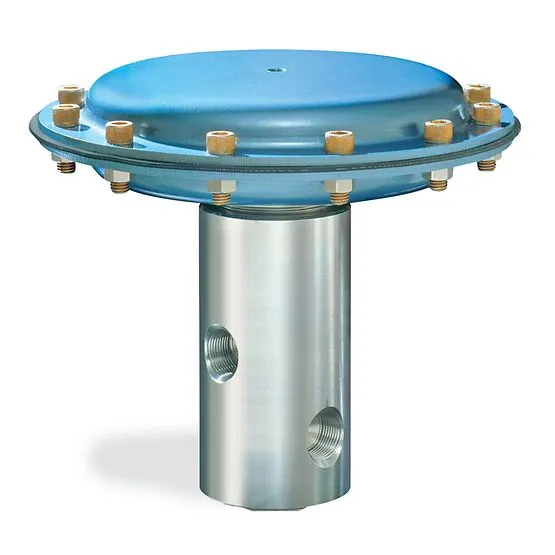

Emerson Tescom 54-2200 Series Pressure Regulator Hydraulic, Made with durable Stainless Steel, 1500, 3000, 5000, 6000, 8000 psig / 103, 207, 345, 414, 552 bar

Brand :
Tescom

54-2200 Series pressure reducing regulator is designed for high flow and high pressure hydraulic applications. Inlet and outlet pressure is rated up to 8000 psig / 552 bar with Cv = 2.0 for flows up to 60 GPM / 127 LPM. Spring, air and dome loaded versions are available. Hardened Stainless Steel seat and poppet delivers excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP), hydraulic power units (HPU) and hydraulic component testing.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 54-2200 Series pressure reducing regulator is designed for high flow and high pressure hydraulic applications. Inlet and outlet pressure is rated up to 8000 psig / 552 bar with Cv = 2.0 for flows up to 60 GPM / 127 LPM. Spring, air and dome loaded versions are available. Hardened Stainless Steel seat and poppet delivers excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP), hydraulic power units (HPU) and hydraulic component testing. The Emerson TESCOM 54-2200 Series Pressure Regulator Hydraulic is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Rugged design for tough conditions • Pressure dampening orifice improves stability • Features piston-style sensor, balanced main valve poppet and a non-adjustable manual vent system • Hardened 17-4 Stainless Steel seats help provide long service in abrasive hydraulic applications • Side mounting is standard • Available in spring, hydraulic / dome and air loaded versions • Compatible with TESCOM ER5000 Electropneumatic Controllers • Flanged end connections available

Downloads

TESCOM_ 54_2200 Series Pressure Regulator Hydraulic_datasheet_2.pdf

pdf

Specifications

Outlet Pressure Ranges
1500, 3000, 5000, 6000, 8000 psig / 103, 207, 345, 414, 552 bar Regulator VENTS to 0 psig in all pressure ranges
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 303 or 316 Stainless Steel Seat, Main Valve, Sensor: 17-4 PH Stainless SteelO-Rings: Buna-N, Viton-A , Kalrez , Ethylene Propylene Back-up Rings: Teflon
Bonnet, Remaining Parts
303 Stainless Steel
Ambient Operating Fluid Media Temperature
-40°F to 200°F / -40°C to 93°C (Varies with sealing material selected, please consult TESCOM)
Port Size & Type
3/4SAE, NPTF, MS336491/2, 1Flange
Flow Capacity
Main Valve: Cv = 2.0 Vent Valve: Cv = 1.6
Load Type
Spring, Dome, Air
Weight (approximately)
15 lbs / 6.8 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
