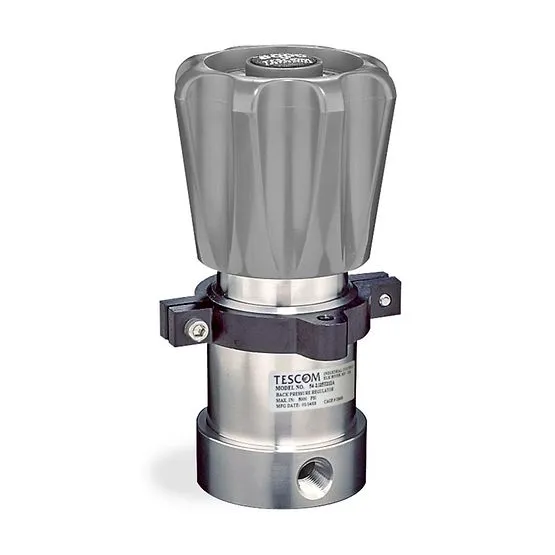

Emerson Tescom 54-2100 Series Backpressure Liquid Regulator, 300/316 Stainless Steel Construction

Brand :
Tescom

54-2100 Series backpressure regulator is suitable for 15,000 psig / 1034 bar liquid applications. Modifications are also available for 20,000 psig / 1379 bar and 30,000 psig / 2068 bar. Hardened Stainless Steel seat and stem provide excellent wear resistance in harsh applications. Ideal for use in pump discharge pressure control, chemical injection and burst testing.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 54-2100 Series backpressure regulator is suitable for 15,000 psig / 1034 bar liquid applications. Modifications are also available for 20,000 psig / 1379 bar and 30,000 psig / 2068 bar. Hardened Stainless Steel seat and stem provide excellent wear resistance in harsh applications. Ideal for use in pump discharge pressure control, chemical injection and burst testing. The Emerson TESCOM 54-2100 Series Backpressure Liquid Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Accuracy ± 1% of control pressure range • Easily adjusted, low torque handknob control, dome and air loaded versions are available • Hardened Stainless Steel seats • Safe and reliable piston-style sensor • Panel mounting is standard • Compatible with TESCOM s air actuator and ER5000 Electropneumatic Controllers

Downloads

TESCOM_ 54_2100 Series Backpressure Liquid Regulator_datasheet_2.pdf

pdf
Download

Specifications

Control Pressure Ranges
0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000, 200-10,000, 300-15,000 psig0-34.5, 0-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414, 13.8-690, 20.7-1034 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel Seat and Poppet: 17-4 Stainless SteelO-Ring: See Part Number Selector Valve Seal: Vespel Remaining Parts: 300 Series Stainless Steel
Back-up Ring (Inlet Pressure Ranges)
2500-10,000 psig / 172-690 bar: Teflon   15,000 psig / 1034 bar: CTFE
Sensor Seal (Inlet Pressure Ranges)
500-10,000 psig / 34.5-690 bar: CTFE  15,000 psig / 1034 bar: Vespel
Operating Temperature
-15°F to 165°F / -26°C to 74°C
Port Size & Type
1/4, 3/8, 1/2 (NPTF/SAE/MS33649 only), 9/16 (MP/HP only), 3/4 (MP only)SAE, NPTF, MS33649, High Pressure/Amico, Medium Pressure/Slimline
Flow Capacity
Cv = 0.08
Load Type
Spring, Dome, Air
Weight
5 lbs / 2.3 kg
Additional Information
For custom modifications or a complete system solution, please�contact�your local sales office.
