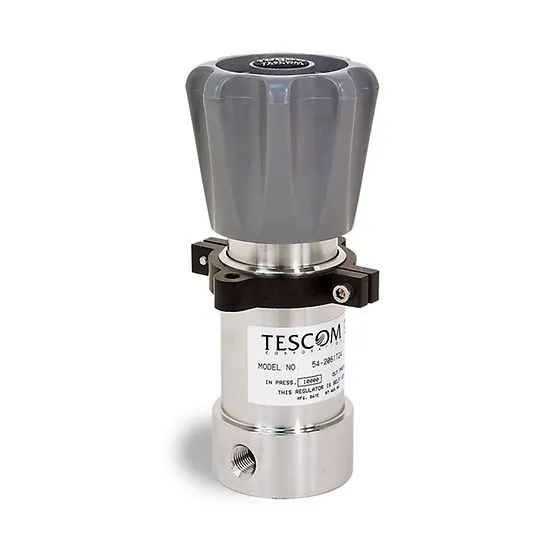

Emerson Tescom 54-2000 Series Pressure Regulator Hydraulic, Made with durable Stainless Steel, 5-500, 5-800, 10-1500, 15-2500, 25-4000, 50-6000, 200-10,000 psig / 0.35-34.5, 0.35-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414, 13.8-690 bar

Brand :
Tescom

54-2000 Series pressure reducing regulator is suitable for 10,000 psig / 690 bar inlet and outlet hydraulic applications. Segregated and captured vent allows for convenient downstream pressure reduction adjustments. Hardened Stainless Steel seat and stem provide excellent wear resistance in harsh applications. Ideal for use in wellhead control panels, subsea valve actuations, Hydraulic Power Units (HPU) and component testing.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 54-2000 Series pressure reducing regulator is suitable for 10,000 psig / 690 bar inlet and outlet hydraulic applications. Segregated and captured vent allows for convenient downstream pressure reduction adjustments. Hardened Stainless Steel seat and stem provide excellent wear resistance in harsh applications. Ideal for use in wellhead control panels, subsea valve actuations, Hydraulic Power Units (HPU) and component testing. The Emerson TESCOM 54-2000 Series Pressure Regulator Hydraulic is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Special models available for 15,000 and 20,000 psig / 1034 and 1379 bar • Segregated vent for easy pressure adjustments in either direction • Main valve cartridge • High-impact handknob • Cartridge style models are available • NACE compatible designs are available • Compatible with TESCOM air actuators and ER5000 Electropneumatic Controller • Piston-sensed design ensures safety and reliability

Downloads

TESCOM_ 54_2000 Series Pressure Regulator Hydraulic_datasheet_1.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
5-500, 5-800, 10-1500, 15-2500, 25-4000, 50-6000, 200-10,000 psig  0.35-34.5, 0.35-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414, 13.8-690 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel Main Valve, Vent Seat, Poppets: 17-4 Stainless SteelO-Rings: Viton-A , Buna-N, Ethylene Propylene, Kalrez Back-up Rings: PTFE
Remaining Parts
300 Series Stainless Steel and 17-4 Stainless Steel
Ambient Operating Temperature2
-15°F to 165°F / -26°C to 74°C 2 For extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.
Port Size & Type
1/4, 3/8, 1/2SAE, NPTF, MS33649, High Pressure, Medium PressureExternal Vent Port (1/4): SAE, NPTF, MS33649
Flow Capacity
Main Valve: Cv = 0.06 Vent Valve: Cv = 0.08
Load Type
Spring
Weight
5.3 lbs / 2.4 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office
