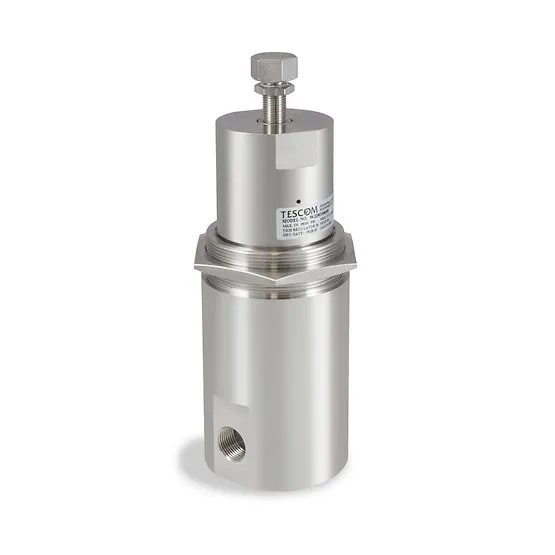

Emerson Tescom 50-2200 Hydraulic Pressure Regulator, Made with 316 Stainless Steel, Nitronic 60

Brand :
Tescom

50-2200 Series pressure reducing regulator is specifically designed for extended life operation in high pressure hydraulic applications. Suitable for wellhead control panels, subsea valve actuation, chemical injection and Hydraulic Power Units (HPU).

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 50-2200 Series pressure reducing regulator is specifically designed for extended life operation in high pressure hydraulic applications. Suitable for wellhead control panels, subsea valve actuation, chemical injection and Hydraulic Power Units (HPU). The Emerson TESCOM 50-2200 Hydraulic Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• New stem and seal design extends service life in crucial high pressure water-based hydraulic applications • Specially designed seat and valve for excellent operation in hydraulic applications • Segregated captured venting • Tapered poppet design for better pressure control

Downloads

TESCOM_ 50_2200 Hydraulic Pressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Body Material
316 Stainless Steel, Nitronic 60
Seat, Main Valve, Vent Materials
17-4 Stainless Steel
O-Rings
Buna-N, Viton
Back-up Rings
CTFE
Remaining Parts
300 Series Stainless Steel, 17-4 Stainless Steel and Nitronic 60
Operating Temperature
-15°F to 165°F / -26°C to 74°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.06, 0.12
Load Type
Spring
Weight (approximate)
20 lbs / 9.1 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
