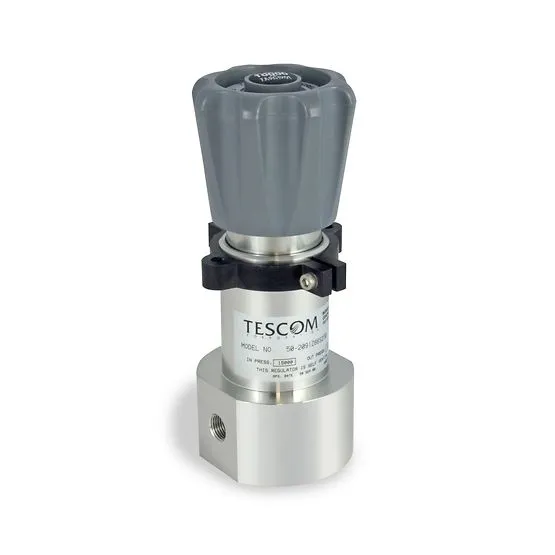

Emerson Tescom 50-2000 Series Hydraulic Pressure Regulator, Made with durable Stainless Steel, Sizes: 1/4, 3/8, 1/2, 9/16, Types: SAE, NPTF, MS33649, Medium Pressure, High Pressure

Brand :
Tescom

50-2000 Series pressure reducing regulator is specifically designed for extended life operation in high pressure hydraulic applications. Ideal for use in wellhead control panels, subsea valve acutation, chemical injection and Hydraulic Power Units (HPU).

View all
Quantity



Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 50-2000 Series pressure reducing regulator is specifically designed for extended life operation in high pressure hydraulic applications. Ideal for use in wellhead control panels, subsea valve acutation, chemical injection and Hydraulic Power Units (HPU).The Emerson TESCOM 50-2000 Series Hydraulic Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• New stem and seal design extends service life in crucial high pressure water-based hydraulic applications • Specially designed seat and valve for excellent operation in hydraulic applications • Segregated captured venting • Tapered poppet design for better pressure control • Higher pressure models are available

Downloads

TESCOM_ 50_2000 Series Hydraulic Pressure Regulator_datasheet_2.pdf

pdf

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel Seat, Vent and Main Valve: 17-4 Stainless Steel, Vespel Back-up O-Rings: See Part Number Selector
Remaining Parts
300 Series Stainless Steel, 17-4 Stainless Steel, and Nitronic 60
Operating Temperature
-15°F to 165°F / -26°C to 74°C
Port Size & Type
Sizes: 1/4, 3/8, 1/2, 9/16 Types: SAE, NPTF, MS33649, Medium Pressure, High Pressure
Flow Capacity
Cv = 0.02, 0.06, 0.12
Load Type
Spring, Air
Weight
5.5 lbs / 2.5 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
