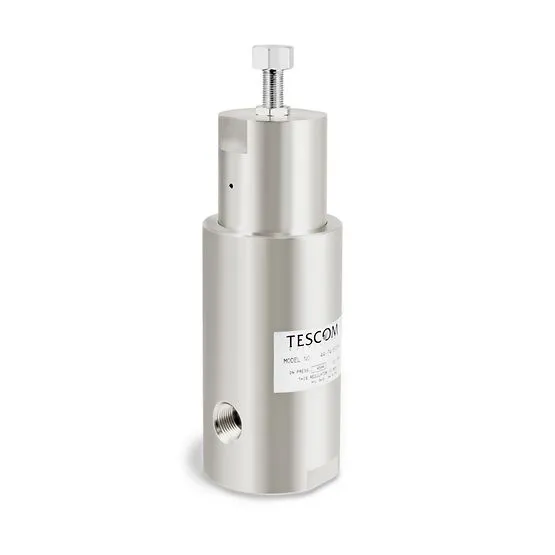

Emerson Tescom 44-7400 CNG Pressure Regulator, Stainless Steel: 5000 psig / 345 bar, Brass: 4000 psig / 276 bar

Brand :
Tescom

44-7400 Series high flow, high pressure, spring loaded pressure reducing regulator offers outlet pressures up to 5000 psig / 345 bar with flow rates from 25-2000 SCFM / 708-56,633 SLPM. Available in Brass or Stainless Steel and two standard Cvs. Ideal for use in CNG dispensing, hydraulic or pneumatic test stands.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-7400 Series high flow, high pressure, spring loaded pressure reducing regulator offers outlet pressures up to 5000 psig / 345 bar with flow rates from 25-2000 SCFM / 708-56,633 SLPM. Available in Brass or Stainless Steel and two standard Cvs. Ideal for use in CNG dispensing, hydraulic or pneumatic test stands. The Emerson TESCOM 44-7400 CNG Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Several porting configurations are available • Spring adjust, high outlet and high flow • Special design for dispensing compressed natural gas • Balanced main valve minimizes supply pressure effect • Modular design • High safety and reliability

Downloads

TESCOM_ 44_7400 CNG Pressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
Stainless Steel: 5000 psig / 345 bar  Brass: 4000 psig / 276 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 303 Stainless Steel, 316 Stainless Steel or Brass Main Valve Seat: CTFE, Vespel Back Cap: 300 Series Stainless SteelBack-up Rings: PTFE Gaskets: CTFE
O-Rings
Buna-N 90, Buna-N, Viton , Urethane, Kalrez , Ethylene Propylene
Remaining Parts
Type 17-4, 300 Series Stainless Steel, 17-7, Teflon , Brass
Ambient Operating Temperature
0°F to 165°F / -17°C to 74°C
Port Size & Type
Inlet & Outlet Port Type: SAE, NPTF, MS33649 Inlet & Outlet Port Size: 1/2, 3/4
Flow Capacity
Cv = 0.8, 2.0
Load Type
Spring
Weight
14 lbs / 6.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
