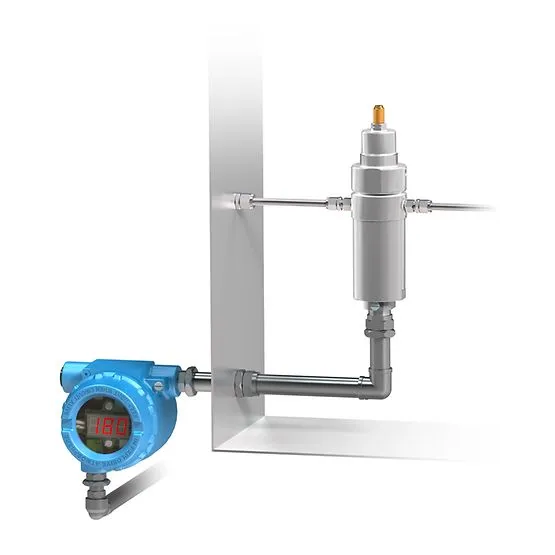

Emerson Tescom 44-6800 Series Vaporizing Regulator, Made with durable Stainless Steel, 25, 50, 100, 250, 500 psi g/ 1.7, 3.4, 6.9, 17.2, 34.5 bar172, 345, 690, 1724, 3448 kPa

Brand :
Tescom

The new 44-6800 Series Vaporizing Regulator offers superior heat transfer technology that ensures the delivery of single-phase vapor samples required for accurate analytical results. It features certified separability of the regulator body from the electronic enclosure for greater installation flexibility. The 44-6800 Series is ideal for gas processing, refining, and petrochemical sample conditioning systems for online gas chromatographs.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM The new 44-6800 Series Vaporizing Regulator offers superior heat transfer technology that ensures the delivery of single-phase vapor samples required for accurate analytical results. It features certified separability of the regulator body from the electronic enclosure for greater installation flexibility. The 44-6800 Series is ideal for gas processing, refining, and petrochemical sample conditioning systems for online gas chromatographs. The Emerson TESCOM 44-6800 Series Vaporizing Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• For worldwide use, Designed for 100/240 VAC, 50/60 Hz • CSA, ATEX and IECEX Certification to T3 (200°C) for flammable gases, vapors or liquids atmospheres and combustible dust atmospheres • Certified separability enables user to decouple the regulator body and the electronic enclosure while retaining product certifications • 4-20 mA analog output for remote temperature monitoring and data acquisition • Optional LED temperature display • Optional panel mounting • Advanced heat transfer technology • Heater with PID controller in all product configurations • Single turn heater temperature control dial • NACE MR0175/ISO 15156

Downloads

TESCOM_ 44_6800 Series Vaporizing Regulator_datasheet_2.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
25, 50, 100, 250, 500 psig1.7, 3.4, 6.9, 17.2, 34.5 bar172, 345, 690, 1724, 3448 kPa
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel, Nickel Alloy (Hastelloy )Seat: Polyimide (Vespel SP21) Diaphragm and Spring: Cobalt Chrome Nickel Alloy (Elgiloy ), Nickel Alloy (Hastelloy )Remaining Parts: 316 Stainless Steel, Nickel Alloy (Hastelloy )
Maximum Operating Temperatures
Maximum Media Temperature: 392°F / 200°C Maximum Ambient Temperature: 185 °F / 85 °C for Regulator Body & 149 °F / 65 °C for Electrical Enclosure
Minimum Ambient Temperature
-40°F / -40°C
Heater
Single heater rated for 100 Watts at 120 VAC and 400 Watts at 240 VACHeater Temperature Control 270° turn: 122°F to 752°F / 50°C to 400°CHeater Temperature Analog Output: 4-20 mA correlates to a heater thermocouple reading of 122 °F to 752 °F / 50 °C to 400 °C
Port Size & Type
1/4" NPTF, Tube Stub
Flow Capacity
0.02
Weight
6.3 lbs / 2.9 kg
Addition Information
For custom modifications or a complete system solution, please contact your local sales office.
