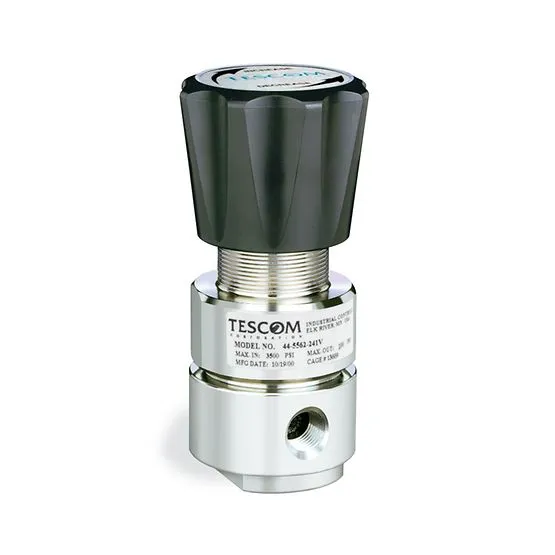

Emerson Tescom 44-5500 Series Backpressure Gas Regulator, 316 Stainless Steel Construction

Brand :
Tescom

44-5500 Series general purpose, compact backpressure regulator controls pressures up to 300 psig / 20.7 bar and is suitable for gas or liquid service. Suitable for general purpose, industrial equipment for hydraulic or pneumatic service, and backpressure pump control.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-5500 Series general purpose, compact backpressure regulator controls pressures up to 300 psig / 20.7 bar and is suitable for gas or liquid service. Suitable for general purpose, industrial equipment for hydraulic or pneumatic service, and backpressure pump control. The Emerson TESCOM 44-5500 Series Backpressure Gas Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Economical, compact design • Piston sensed design is safe and?reliable • Choice of Stainless Steel or Brass construction • Cv = 0.3 • Low handknob torque • Bubble-tight shutoff at all reseating pressures • Panel mounting is standard • Optional gauge ports

Downloads

TESCOM_ 44_5500 Series Backpressure Gas Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel or Brass Seat Retainer: PEEKO-Ring: Viton , Kalrez Remaining Parts Stainless model: Stainless Steel Brass model: Brass
Operating Temperature
-15°F to 200°F / -26°C to 93°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.30
Weight
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
