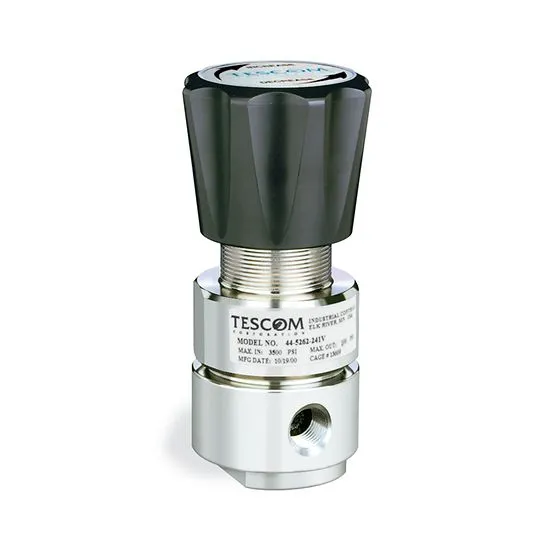

Emerson Tescom 44-5200 Series Pressure Regulator Control, 316 Stainless Steel Construction

Brand :
Tescom

44-5200 Series is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Venting or air load is optional for use with the ER5000 Electropneumatic Controller. Ideal for use in test equipment, calibration stands and production equipment.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-5200 Series is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Venting or air load is optional for use with the ER5000 Electropneumatic Controller. Ideal for use in test equipment, calibration stands and production equipment. The Emerson TESCOM 44-5200 Series Pressure Regulator Control is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Compact and economical design • For gas or liquid service • Piston sensed for high reliability and long service life • Standard version includes 1/4"" NPTF gauge ports • Brass or Stainless Steel construction • Adjustable stop limits maximum outlet pressure • Modification with 6000 psig / 414 bar inlet pressure is available • Venting and captured venting is available, NACE compliant designs are available

Downloads

TESCOM_ 44_5200 Series Pressure Regulator Control_datasheet_2.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
1-25, 1-50, 2-100, 2-250, 5-500, 5-600 psig  0.07-1.7, 0.07-3.4, 0.14-6.9, 0.14-17.2, 0.35-34.5, 0.35-41.4 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body, Piston: 316 Stainless Steel or Brass Bonnet: 300 Series Stainless Steel or Brass Seats: Vespel O-Ring: Viton Filter (40 micron): 316 Stainless Steel
Remaining Parts
300 Series Stainless Steel and Brass
Operating Temperature
-15°F to 200°F / -26°C to 93°CFor extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.06, 0.15
Load Type
Dome, Air
Weight (without gauges)
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
