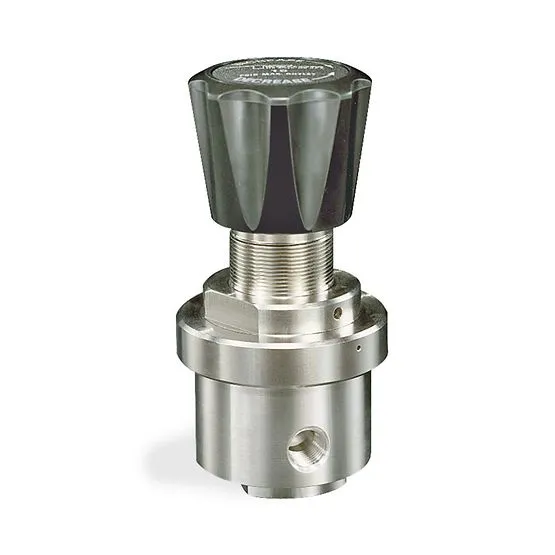

Emerson Tescom 44-4700 Series Industrial Backpressure Gas Regulator, 316 Stainless Steel Construction

Brand :
Tescom

44-4700 Series is an extremely sensitive, high purity, backpressure regulator for specialty, flammable and industrial gases for low pressure, and sub-atmospheric pressure control. Diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in analytical systems, sample systems and pilot plants.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-4700 Series is an extremely sensitive, high purity, backpressure regulator for specialty, flammable and industrial gases for low pressure, and sub-atmospheric pressure control. Diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in analytical systems, sample systems and pilot plants. The Emerson TESCOM 44-4700 Series Industrial Backpressure Gas Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• 316 Stainless Steel diaphragm provides metal-to-metal sealing integrity and good sensitivity • Large sensing seat area ratio provides a low crack-to-reseat pressure differential and excellent repeatability • Negative spring bias for vacuum systems • Adjustable stop limits maximum outlet pressure • NACE compliant designs are available

Downloads

TESCOM_ 44_4700 Series Industrial Backpressure Gas Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body & Diaphragm: 316 Stainless Steel Bonnet: Electroless Nickel Plated Brass Seat: Teflon Spring Main Valve & Bias: 316 Stainless Steel
Remaining Parts
316 Stainless Steel
Ambient Operating Temperature
-40°F to 165°F / -40°C to 74°C
Port Size & Type
1/4, 3/8SAE, NPTF, MS33649, HPIC
Flow Capacity
Cv = 0.04, 0.30 optional:
Load Type
Spring
Weight
2.75 lbs / 1.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
