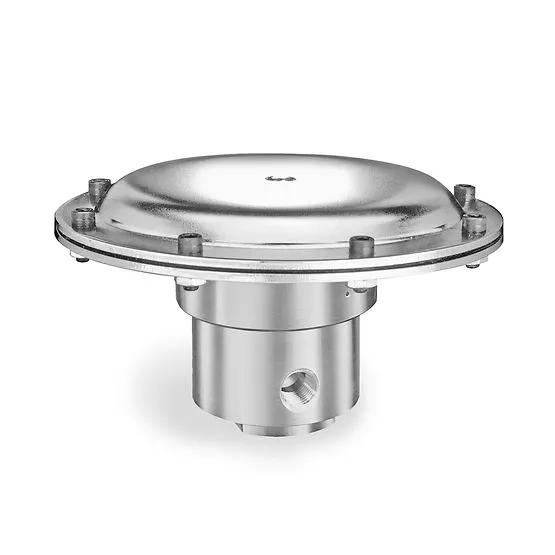

Emerson Tescom 44-4600 Single Stage Regulator, 316 Stainless Steel Construction

Brand :
Tescom

44-4600 Series is an extremely sensitive, high purity, single-stage regulator for specialty, flammable and industrial gases for low pressure and sub-atmospheric pressure control. Diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in analytical systems, sample systems, process systems, pilot plants and calibration.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-4600 Series is an extremely sensitive, high purity, single-stage regulator for specialty, flammable and industrial gases for low pressure and sub-atmospheric pressure control. Diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in analytical systems, sample systems, process systems, pilot plants and calibration. The Emerson TESCOM 44-4600 Single Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Optional 3500 psig / 241 bar maximum inlet • Metal-to-metal sealed diaphragm • Adjustable stop limits maximum outlet pressure • 316 Stainless Steel construction • Available in dome or air load

Downloads

TESCOM_ 44_4600 Single Stage Regulator_datasheet_2.pdf

pdf
Download

Specifications

Materials
Body & Diaphragm: 316 Stainless Steel Seat: Teflon Spring (main valve): Elgiloy Spring (bias): 316 Stainless Steel Remaining Parts: 316 Stainless Steel
Operating Temperature
-40°F to 165°F / -40°C to 74°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.24
Weight (without gauges)
2.75 lbs / 1.2 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
