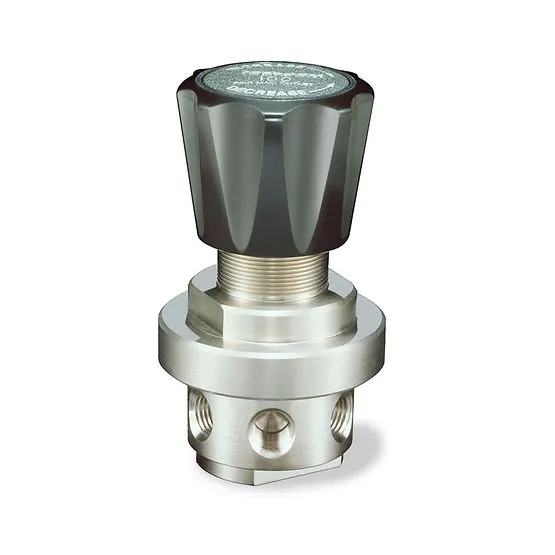

Emerson Tescom 44-2900 Series Backpressure Gas Regulator, 316 Stainless Steel Body

Brand :
Tescom

44-2900 Series backpressure regulator is designed to be compact, extremely sensitive and for industrial gases with flows up to 20 SCFM / 566 SLPM. The convoluted Stainless Steel diaphragm provides excellent sensitivity and repeatability; metal-to-metal diaphragm seal minimizes the potential for leakage. Ideal for use in R & D laboratories, process systems and pilot plants.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-2900 Series backpressure regulator is designed to be compact, extremely sensitive and for industrial gases with flows up to 20 SCFM / 566 SLPM. The convoluted Stainless Steel diaphragm provides excellent sensitivity and repeatability; metal-to-metal diaphragm seal minimizes the potential for leakage. Ideal for use in R & D laboratories, process systems and pilot plants. The Emerson TESCOM 44-2900 Series Backpressure Gas Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• 316 Stainless Steel diaphragm provides metal-to-metal sealing integrity and good sensitivity • Large sensing seat area ratio provides a low crack to reseat pressure differential and excellent repeatability • Bubble-tight shutoff at all reseating pressures • Flow capacity Cv = 0.3 • Panel mounting is standard • Suitable for non-corrosive and corrosive gases

Downloads

TESCOM_ 44_2900 Series Backpressure Gas Regulator_datasheet_2.pdf

pdf

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel Seat Retainer: PEEKO-Ring: Viton , Kalrez Diaphragm, Spring: 316 Stainless Steel Remaining Parts: 316 Stainless Steel
Operating Temperature
-15°F to 140°F / -26°C to 60°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.30
Load Type
Spring
Weight
3 lbs / 1.4 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
