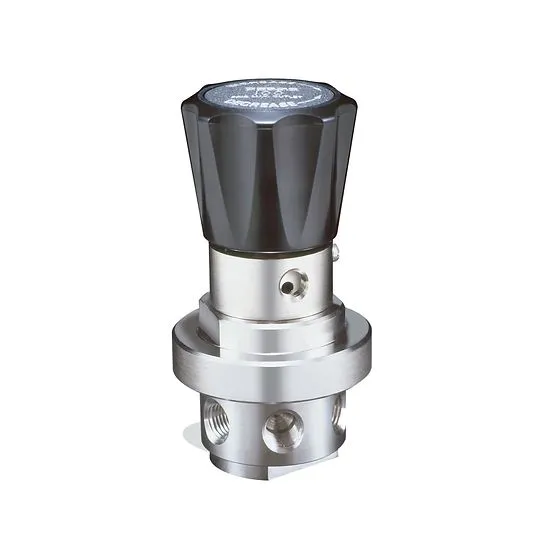

Emerson Tescom 44-2800 Series Shutoff Regulator, Made with durable 316 Stainless Steel

Brand :
Tescom

44-2800 Series tied diaphragm design provides additional shut-off assistance for toxic or corrosive gases. Positional captured bonnet provides secondary containment for added safety. Available in Hastelloy or Monel materials. Ideal for use in instrumentation/analyzer equipment.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-2800 Series tied diaphragm design provides additional shut-off assistance for toxic or corrosive gases. Positional captured bonnet provides secondary containment for added safety. Available in Hastelloy or Monel materials. Ideal for use in instrumentation/analyzer equipment. The Emerson TESCOM 44-2800 Series Shutoff Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Repeatability: ±0.50% of maximum rated outlet pressure • Convoluted diaphragm provides maximum sensitivity and minimum droop • Metal-to-metal diaphragm to body seal • Positionable captured vent bonnet and adjustable stop to limit outlet pressures • Hastelloy  C or Monel trim options are available (-135 modification)

Downloads

TESCOM_ 44_2800 Series Shutoff Regulator_datasheet_2.pdf

pdf
Download

Specifications

Body & Diaphragm Material
316 Stainless Steel
Friction Sleeve Materials
Inner: Teflon Outer: 316 Stainless Steel
Spring Material
Elgiloy
Seat Material
CTFE
Remaining Parts
316 Stainless Steel
Operating Temperature
-40°F to 140°F / -40°C to 60°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.16
Weight (without gauges)
3 lbs / 1.4 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
