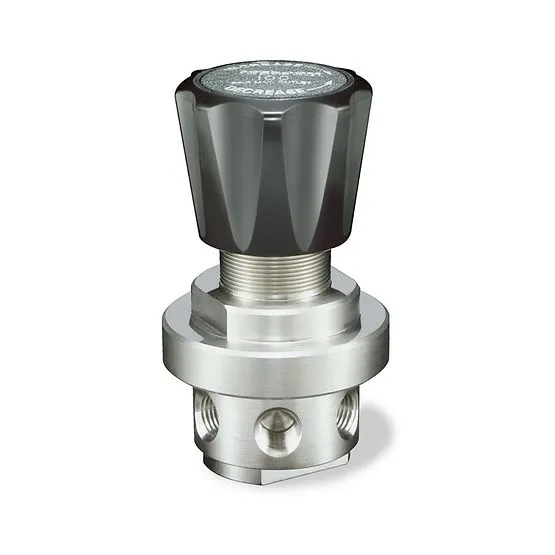

Emerson Tescom 44-2600 Single Stage Gas Regulator, Stainless Steel Body, 0 -12, 25, 50, 100, 150, 250 psig (400 psig inlet models only)/0.83, 1.7, 3.4, 6.9, 10.3, 17.2 bar (27.6 bar inlet models only)

Brand :
Tescom

44-2600 Series is a compact, extremely sensitive, high purity single-stage regulator for specialty, flammable and industrial gases with flows of less than 10 SCFM / 283 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in gas/analyzer sampling systems, fuel cells, tissue and cell culture incubators, and chromatograph flame detector fuel supply. Also excellent for low outlet and low differential pressure applications.

View all
Quantity



Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-2600 Series is a compact, extremely sensitive, high purity single-stage regulator for specialty, flammable and industrial gases with flows of less than 10 SCFM / 283 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in gas/analyzer sampling systems, fuel cells, tissue and cell culture incubators, and chromatograph flame detector fuel supply. Also excellent for low outlet and low differential pressure applications. The Emerson TESCOM 44-2600 Single Stage Gas Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Features a large convoluted diaphragm for extreme sensitivity with minimum droop • Repeatability: ±0.5% of outlet pressure range • Metal-to-metal diaphragm to body seal • Accuracy: ±1% of outlet pressure range • Gauge ports are standard • Dome loaded version is available • Cv = 0.02 and Cv = 0.24 models are available • NACE compliant designs are available

Downloads

catalog-series-44-2600-single-stage-regulator-tescom-en-5322286.pdf

pdf

Specifications

Outlet Pressure Ranges
0 -12, 25, 50, 100, 150, 250 psig (400 psig inlet models only) 0.83, 1.7, 3.4, 6.9, 10.3, 17.2 bar (27.6 bar inlet models only)
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel Bonnet: 303 Stainless Steel Diaphragm: 316 Stainless Steel Seat: Teflon Friction Sleeve (Inner): Teflon Remaining Parts: 316 Stainless Steel
Operating Temperature
-40°F to 165°F / -40°C to 74°C
Port Size & Type
1/4 NPTF
Flow Capacity
400 psig / 27.6 bar inlet: Cv = 0.153500 psig / 241 bar inlet: Cv = 0.06
Load Type
Spring, Dome
Weight
3 lbs / 1.4 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
