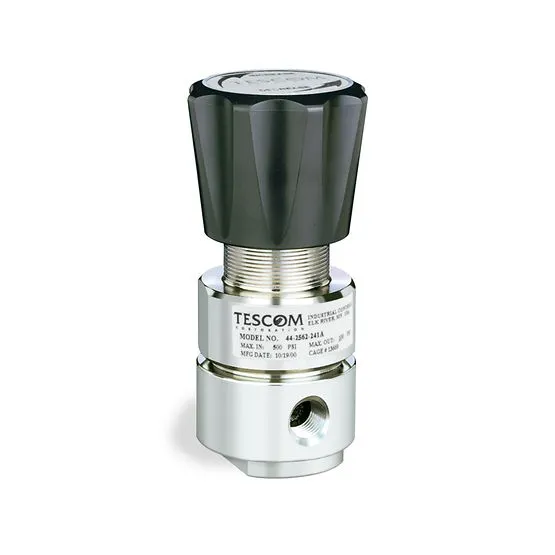

Emerson Tescom 44-2500 Series Single Stage Regulator, 316 Stainless Steel Construction

Brand :
Tescom

44-2500 Series is a compact, lightweight, single-stage regulator for specialty, flammable, and industrial gases for flows up to 30 SCFM / 850 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Suitable for general purpose.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-2500 Series is a compact, lightweight, single-stage regulator for specialty, flammable, and industrial gases for flows up to 30 SCFM / 850 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Suitable for general purpose. The Emerson TESCOM 44-2500 Series Single Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Reduces contamination and provides accurate regulation of non-corrosive and corrosive gases • Convoluted metal-to-metal sealed diaphragm • Close pressure differential between crack and reseat • Economically priced • Panel mounting standard • Bubble-tight shutoff at all reseating pressures • Flow capacity Cv = 0.30

Downloads

TESCOM_ 44_2500 Series Single Stage Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel or Brass Seat Retainer: PEEKO-Ring: Viton , Kalrez Diaphragm, Filter, Spring: 316 Stainless Steel Remaining Parts: 316 Stainless Steel or Brass
Operating Temperature
-15°F to 140°F / -26°C to 60°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.30
Weight
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
