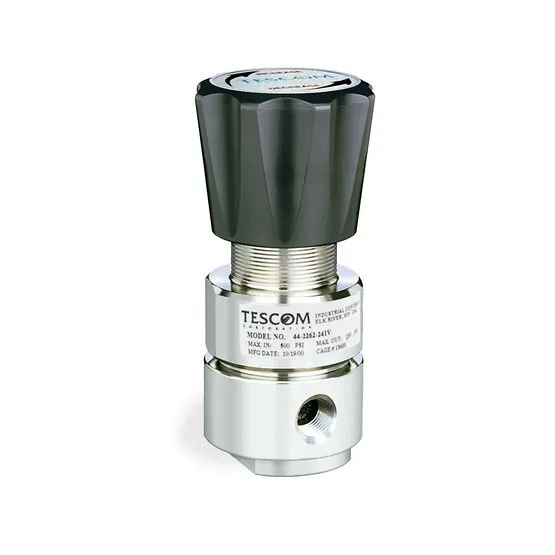

Emerson Tescom 44-2300 Series Single Stage Backpressure Regulator, 316 Stainless Steel Construction

Brand :
Tescom

44-2300 Series is a compact, lightweight, single-stage backpressure regulator for specialty, flammable, and industrial gas flows of less than 4 SCFM / 113 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in analytical systems, gas sampling, pilot plants, OEM packages and R & D laboratories.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-2300 Series is a compact, lightweight, single-stage backpressure regulator for specialty, flammable, and industrial gas flows of less than 4 SCFM / 113 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in analytical systems, gas sampling, pilot plants, OEM packages and R & D laboratories. The Emerson TESCOM 44-2300 Series Single Stage Backpressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Reduces contamination and provides accurate regulation of corrosive or non-corrosive gases • Convoluted metal-to-metal sealed diaphragm • Close pressure differential between crack and reseat • Compact and economical • Dome loading is optional • Panel mounting is available

Downloads

TESCOM_ 44_2300 Series Single Stage Backpressure Regulator_datasheet_1.pdf

pdf
Download

TESCOM_ 44_2300 Series Single Stage Backpressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel, Brass, or Monel Bonnet: 300 Series Stainless Steel, Brass Seat: CTFE Diaphragm: 316 Stainless Steel or Elgiloy
Remaining Parts
316 Stainless Steel, Monel (for Monel body)
Operating Temperature
-40°F to 140°F / -40°C to 60°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.08
Load Type
Spring, Dome
Weight
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please�contact�your local sales office.
