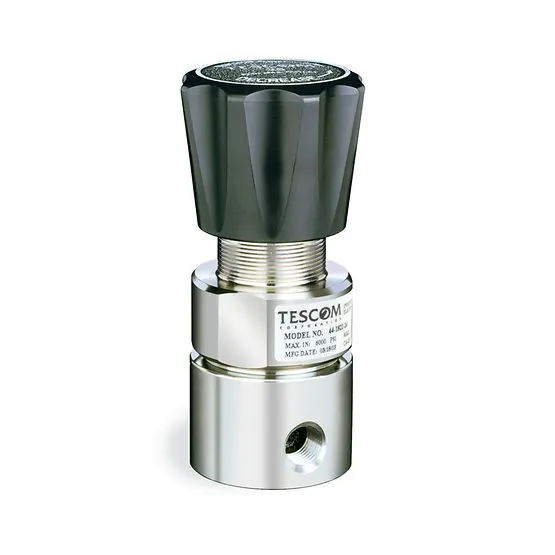

Emerson Tescom 44-1700 Series Compact Backpressure Regulator, Stainless Steel Body, 40-150, 40-300, 100-700, 100-800 psig/2.8-10.3, 2.8-20.7, 6.9-48.3, 6.9-55.2 bar

Brand :
Tescom

44-1700 Series is a general purpose, compact backpressure regulator for control pressures up to 800 psig / 55.2 bar. Ideal for use in industrial equipment for hydraulic or pneumatic service.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-1700 Series is a general purpose, compact backpressure regulator for control pressures up to 800 psig / 55.2 bar. Ideal for use in industrial equipment for hydraulic or pneumatic service. The Emerson TESCOM 44-1700 Series Compact Backpressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Economical, compact design • Piston sensed design is safe and reliable • Available in a Stainless Steel or Brass design • Optional gauge ports and panel mounting • Flow capacity Cv = 0.10 • Low handknob torque for easy operation • Bubble-tight shutoff at all reseating pressures

Downloads

TESCOM_ 44_1700 Series Compact Backpressure Regulator_datasheet_1.pdf

pdf
Download

TESCOM_ 44_1700 Series Compact Backpressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Controlled Pressure Ranges
40-150, 40-300, 100-700, 100-800 psig2.8-10.3, 2.8-20.7, 6.9-48.3, 6.9-55.2 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 316 Stainless Steel or BrassSeat: CTFEO-Ring: Viton Back-up Ring: Teflon
Remaining Parts
Stainless model: 316 Stainless Steel Brass model: Brass and 300 Series Stainless Steel
Operating Temperature
-15°F to 140°F / -26°C to 60°C
Port Size & Type
1/4 NPTF
Flow Capacity
Cv = 0.10
Weight
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
