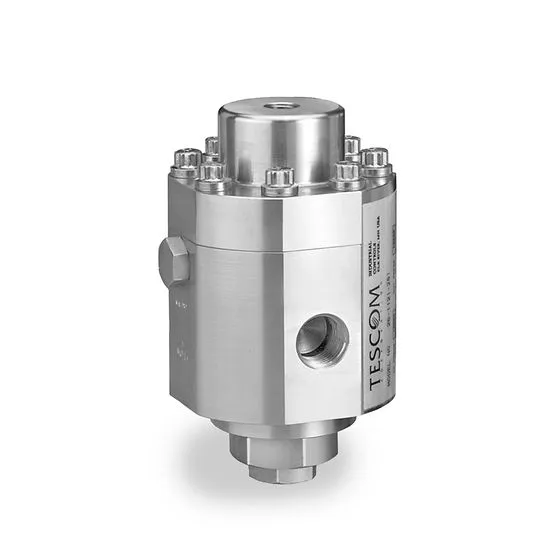

Emerson Tescom 26-1100 Dome Loaded Pressure Reducing Regulator, Made with 303 Stainless Steel, 316 Stainless Steel, Aluminum, or Brass

Brand :
Tescom

26-1100 Series is a dome load, high flow pressure reducing regulator. Ideal for use in pneumatic test consoles and R & D laboratories.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 26-1100 Series is a dome load, high flow pressure reducing regulator. Ideal for use in pneumatic test consoles and R & D laboratories. The Emerson TESCOM 26-1100 Dome Loaded Pressure Reducing Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Constant outlet pressures with variable inlet pressures • Balanced main valve to reduce seat load which insures longer seat life • Wide flow range capability • Low droop; low lock-up • Rapid response time • Mounts in any position • Two orifice sizes are available: 0.25" and 0.375" diameter

Downloads

TESCOM_ 26_1100 Dome Loaded Pressure Reducing Regulator_datasheet_2.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
To Maximum Inlet
Body Material
303 Stainless Steel, 316 Stainless Steel, Aluminum, or Brass
Diaphragm & O-Rings
Buna-N
Back-up Rings
PTFE
Seat Material
CTFE
Retaining Rings
15-7 Stainless Steel
Valve Cap
17-4 Stainless Steel
Remaining Parts
300 Series Stainless Steel
Operating Temperature
-40°F to 165°F / -40°C to 74°C
Port Size & Type
Inlet & Outlet Port Type: SAE, NPTF, MS33649Dome Port: 1/4 MS33649, 1/4 NPTF, 1/4 MS33649Inlet & Outlet Port Size: 3/8, 1/2
Flow Capacity
0.25 Orifice: Cv = 0.46 0.375 Orifice: Cv = 1.30
Load Type
Dome
Weight (without gauges)
Stainless Steel: 10 lbs / 4.5 kgAluminum: 4 lbs / 1.8 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
