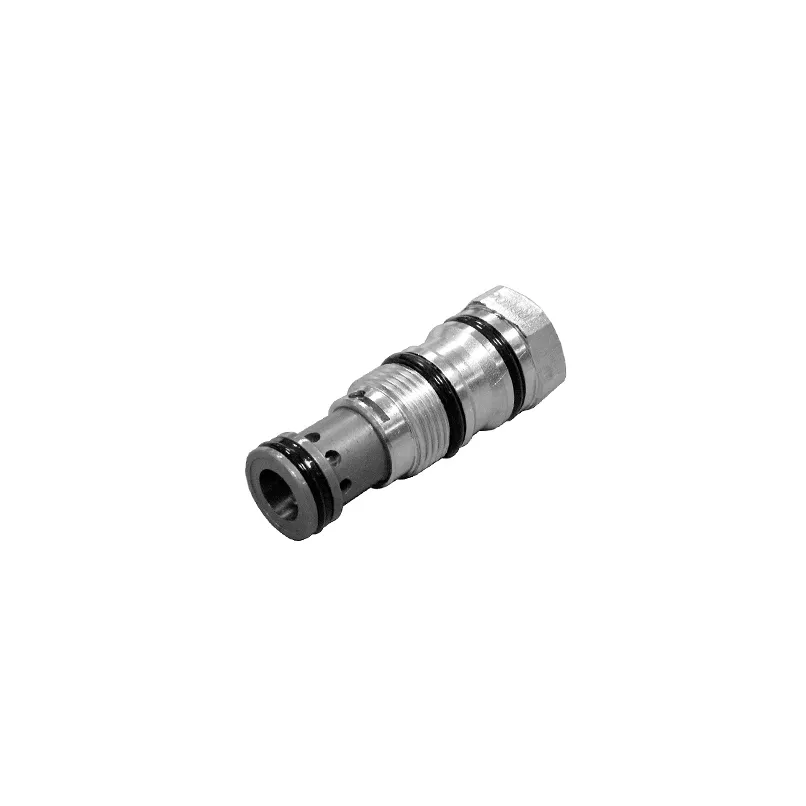

Duplomatic Two- And Three-Port Pressure Compensator With Fixed Or Variable Adjustment, Type PCK06

Brand :
Duplomatic

Duplomatic Two- And Three-Port Pressure Compensator With Fixed Or Variable Adjustment, Type PCK06 - Two- and three-port pressure compensator with fixed or variable adjustment

View all
Quantity
Description
Specifications
Downloads
Related products

Description

PCK06 valves are two or three-port pressure compensators, with fixed or variable adjustment, cartridge type, for block or manifold application. This valve keeps the pressure drop setting fixed between the P and the X pilot connections. It is employed together with proportional directional valves, in order in order to obtain a controlled flow independent of pressure changes. PCK06 with variable adjustment can be set from 7 to 33 bar, by means of a socket hex adjustment screw or an adjustment knob. PCK06 with fixed adjustment is available with set of 4 bar or 8 bar.

Key Features

• Max Working Pressure is 350 bar • Max Flow Rate is 40 l/min • Adjustment Type is Countersunk hex screw or adjustment knob (K1) • Pressure Adjustment Range is Fixed 4 or 8 bar, Variable 7 to 33 bar • Mounting Type is Cartridge type • Seat Type is D-10D

Downloads

Datasheet_PCK06.pdf

pdf
Download

Specifications

Max Working Pressure
350 bar
Max Flow Rate
40 l/min
Adjustment Type
Countersunk hex screw or adjustment knob (K1)
Pressure Adjustment Range
Fixed 4 or 8 bar, Variable 7 to 33 bar
Mounting Type
Cartridge type
Seat Type
D-10D
Surface Treatment
Electrolytic zinc covering Fe/Zn 8/B ISO 2081
Fluid Temperature Range
-20°C to +80°C
Ambient temperature range
-20°C to +60°C
Fluid Viscosity Range
10 ÷ 400 cSt
Recommended viscosity
25 cSt
Contamination Class
ISO 4406:1999 class 20/18/15
Mass
0.2 kg
Hydraulic Fluid Compatibility
HL or HM mineral oils (ISO 6743-4), NBR seals standard
Tightening Torque
45 ÷ 50 Nm (Spanner 22)
Seal Types
OR type 2056 (14.00x1.78), Parbak 8-015 (14.81x1.14x1.35), OR type 3062 (15.54x2.62)
