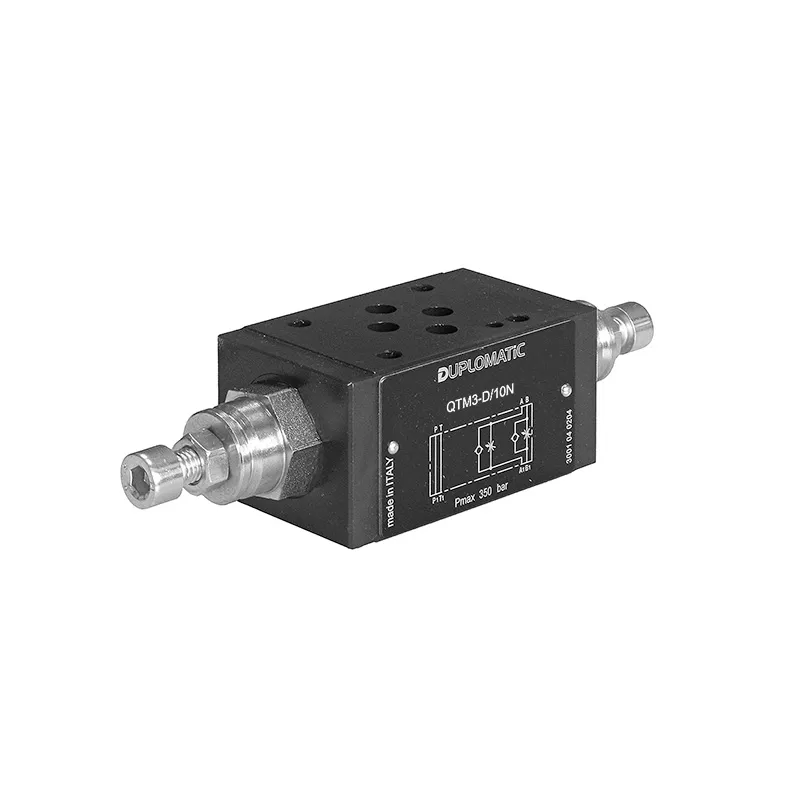

Duplomatic Throttle Valve With Free Flow In One Direction, Type QTM3

Brand :
Duplomatic

Throttle valve with free flow in one direction. Designed for precise flow regulation in hydraulic and industrial systems. Key features include durable construction, reliable operation, and easy integration.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

QTM3 is a one-way flow control valve, with non-return valve for reverse free flow, made in stackable version. There are versions both for meter-in control and for meter-out control. The reversible versions (QTM3-G *) are equipped with an O-ring subplate and can be used for both meter-in or meter-out, depending on the way in which the valve is facing the OR subplate. It is supplied with a socket hex adjustment screw.

Key Features

• Valve Type Three-Way Flow Regulator, Size 02 • Mounting Interface ISO 6263-02 • Max Operating Pressure 250 bar • Flow Control Range Dependent on orifice, typically 0.5–150 l/min • Min Pressure Difference A–B 12 bar • Temperature Compensation ±2%

Downloads

Datasheet_QTM3.pdf

pdf
Download

Specifications

Valve Type
Three-Way Flow Regulator, Size 02
Mounting Interface
ISO 6263-02
Max Operating Pressure
250 bar
Flow Control Range
Dependent on orifice, typically 0.5–150 l/min
Min Pressure Difference A–B
12 bar
Temperature Compensation
±2%
Pressure Compensation
±3%
Fluid Viscosity Range
10 to 400 cSt
Ambient temperature range
-20°C to +60°C
Fluid Temperature Range
-20°C to +80°C
Mass
4.9 kg
Fluid Contamination
ISO 4406:1999 class 20/18/15
