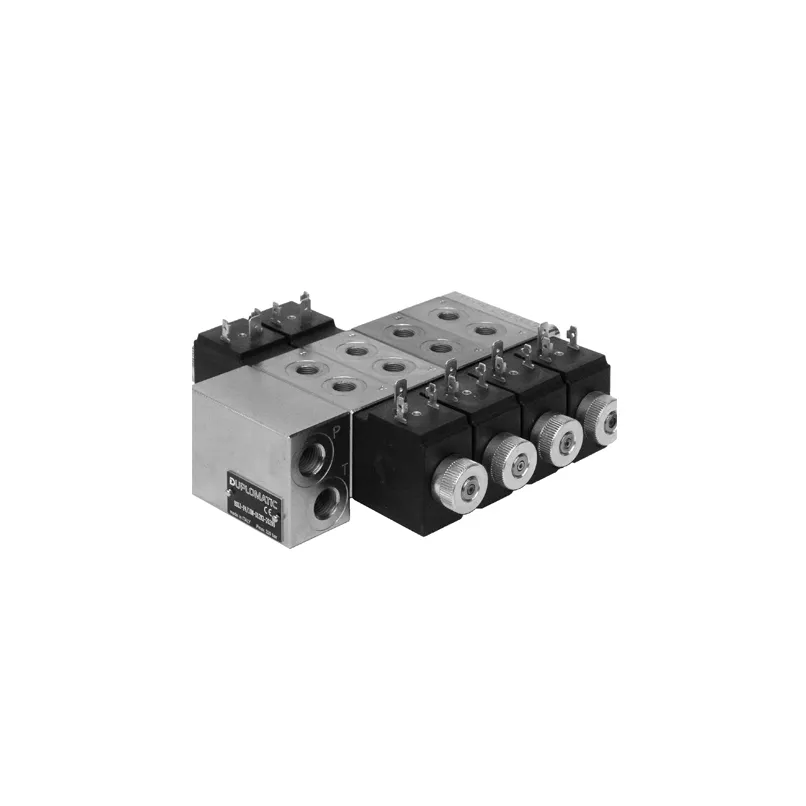

Duplomatic Stacked Modular Valve Assembly, Compact Hydraulic Function Block, Type BDL1

Brand :
Duplomatic

Stacked valve assembly. Designed for industrial applications where precision and modularity are key. Part of Duplomatic's advanced hydraulic solutions.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The BDL1 are directional control valves for stacked valve assembly, They can be assembled in parallel with up to 8 working sections, with a common element with inlet and outlet ports. BDL1 assemblies are suitable for compact applications, mainly in mobile industries and in mini power packs. The directional valve BDL1 have a thickness of 28 mm and 1/8" BSP connections on working ports. Inlet elements have P and T ports 1/4” BSP size, and can be with or without pressure relief valve. The zinc–nickel finishing is applied on the metal parts.

Key Features

• Stackable directional valve design with modular assembly • Suitable for up to 8 stackable valve elements • 1/8” BSP working ports and 1/4” BSP inlet ports • Maximum pressure up to 350 bar on P-A-B ports • Zinc-nickel coated components for corrosion resistance • Compact build ideal for mobile and mini-power pack units • Supports multiple spool types including TA, TB, SA, SB • Electrical options include 12V and 24V DC coils • Available manual override with boot protection • IP65 to IP69K protection depending on connectors

Downloads

Datasheet_BDL1.pdf

pdf
Download

Specifications

Maximum Operating Pressure (P-A-B Ports)
350 bar
Maximum Operating Pressure (T / T1 Ports)
280 bar
Maximum Flow Rate
15 l/min
Fluid Viscosity Range
10 to 400 cSt
Fluid Contamination Degree
ISO 4406:1999 class 20/18/15
Recommended viscosity
25 cSt
Ambient temperature range
-20°C to +50°C
Fluid Temperature Range
-20°C to +80°C
Port Sizes
1/8” BSP (working), 1/4” BSP (P and T ports)
Solenoid Options
D12, D24, D00 (12V, 24V, without coil)
Coil Electrical Connection
K1, K2, K7 types
Manual Override Options
Standard pin, optional CM (boot protected)
Protection degree
IP65 to IP69K depending on connector
Surface Treatment
Zinc-nickel coating
