Duplomatic Stacked Modular Valve Assembly, Compact Hydraulic Function Block, Type BD*

Brand :
Duplomatic

Stacked valve assembly. Designed for industrial applications where precision and modularity are key. Part of Duplomatic's advanced hydraulic solutions.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

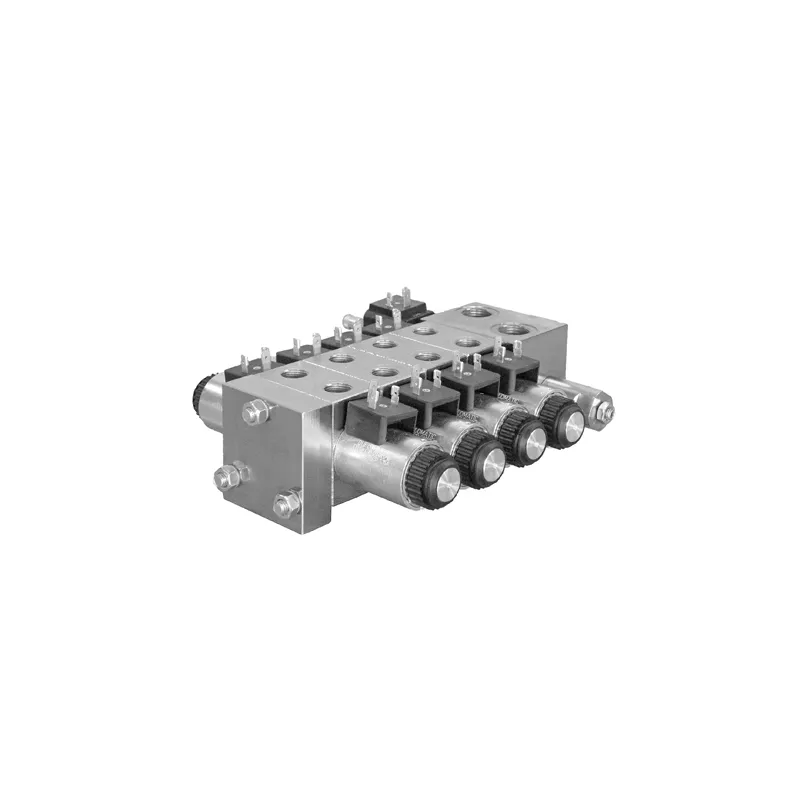

BDL, BDM and BDS are components for stacked valve assemblies. They can be assembled in parallel with up to 10 working sections. The same components allow creating series circuits by inserting plugs in order to deviate the oil path. Inlet elements are available with flow and pressure control, with and without unloading valves. Working elements are available in two thicknesses with working ports 3/8” BSP, 1/2” BSP, SAE-06 or SAE-08 threads. Specific components for series circuits complete the BD* range.

Key Features

• Modular stacked directional control valve assembly • Configurable for parallel or series hydraulic circuits • Supports up to 10 stackable elements • Available with 3/8”, 1/2” BSP and SAE port threads • Maximum pressure up to 320 bar • Flow capacity up to 60 l/min • Zinc-nickel surface treatment for corrosion resistance • Multiple spool and manual override configurations • Wide electrical coil compatibility (12V, 24V, etc.) • Compact and robust for industrial and mobile systems

Downloads

Datasheet_BD_.pdf

pdf
Download

Specifications

Maximum Operating Pressure (P-A-B Ports)
280 bar
Maximum Operating Pressure (T Ports)
250 bar
Maximum Flow Rate (Parallel)
40 l/min
Maximum Flow Rate (Series)
40 l/min
Ambient temperature range
-20°C to +50°C
Fluid Temperature Range
-20°C to +80°C
Fluid Viscosity Range
10 to 400 cSt
Recommended viscosity
25 cSt
Port Sizes
3/8” BSP, 1/2” BSP, SAE–06, SAE–08
Solenoid Tube Diameter
14, 19, 22 mm
Surface Treatment
Zinc-nickel coating
Protection degree
IP65 to IP69K depending on configuration
