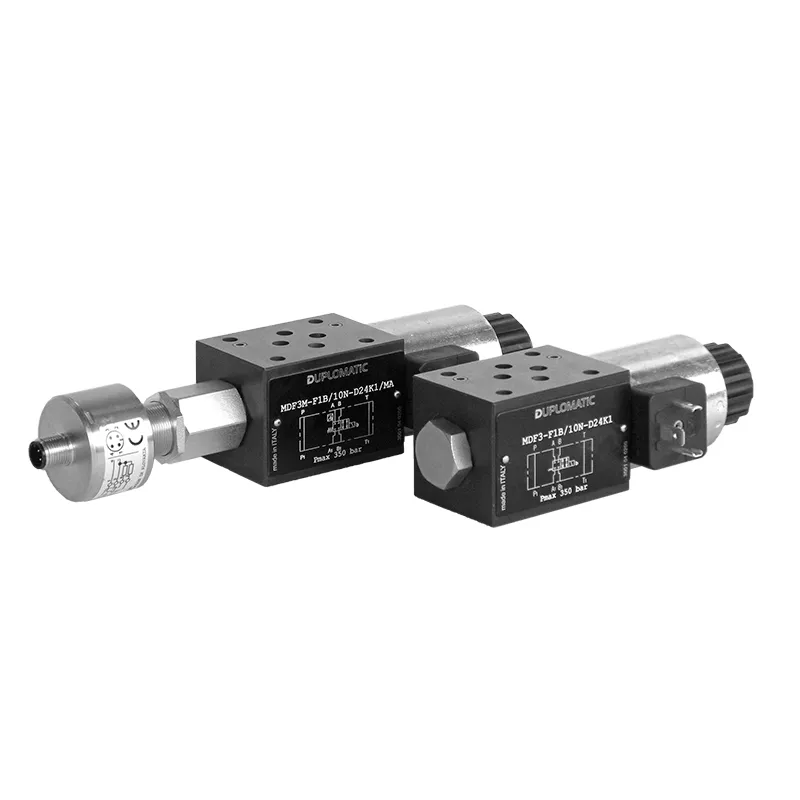

Duplomatic Shut-off Valves Solenoid Or Hydraulically Actuated, With Or Without Position Monitoring, Type M*F3(M)

Brand :
Duplomatic

Shut-off valves solenoid or hydraulically actuated, with or without position monitoring

View all
Quantity
Description
Specifications
Downloads
Related products

Description

MDF3 and MCF3 are stackable shut-off valves, DC solenoid or hydraulically actuated, with or without spool position monitoring. MDF3 and MCF3 valves are placed under directional control servo-valves in order to guarantee the safety of the circuit when a power failure occurs. Spools are available with float, closed, parallel or cross position when switched. Versions with spool monitoring doesn’t have manual override and cannot be disassembled, due their characteristics and their possible use on machinery subject to safety requirements. The spool position monitoring is available either for initial position or for actuated position.

Key Features

• High flow rates supported • Salt spray resistant finish • CETOP-8 interface

Downloads

Datasheet_M_F3_M_.pdf

pdf
Download

Specifications

Mounting Interface
ISO 4401-07-07-0-05 (CETOP 4.2-4-07-350)
Max Operating Pressure
350 bar (standard), 420 bar (high pressure version)
Max Flow Rate
300 l/min
Temperature Range
-20°C to +80°C
Spool Types
S*, TA, TB, SA*, SB*, RK
Surface protection
Zinc-nickel up to 600 hrs salt spray resistance
Weight
6.6–8.6 kg depending on version
Power Supply
24VDC
Fluid Viscosity
25 cSt recommended
Coil Insulation Class
Class H
