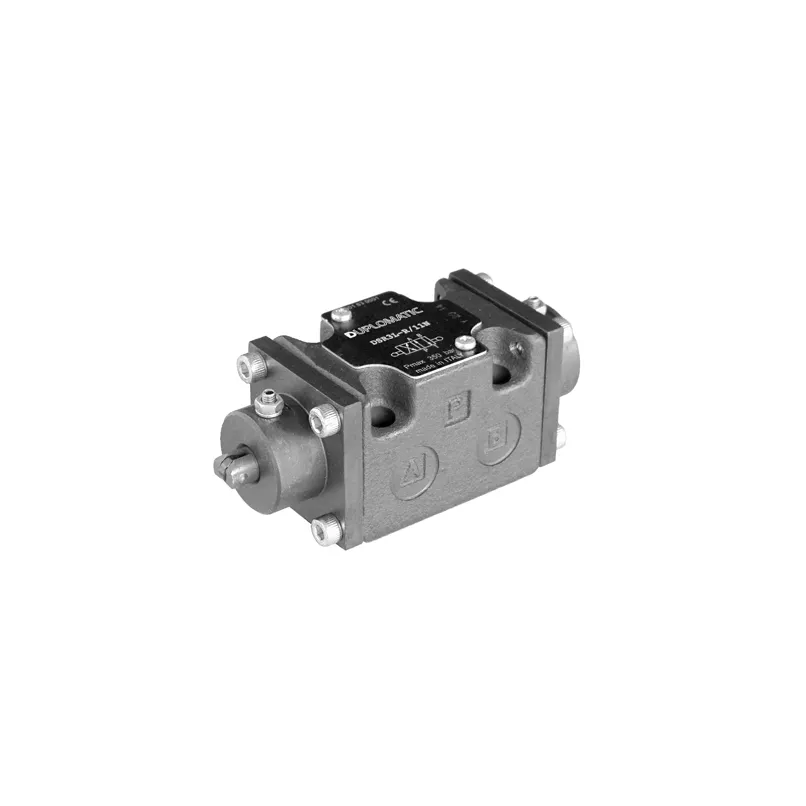

Duplomatic Roller Cam Actuated Directional Control Valves, Type DSR3

Brand :
Duplomatic

Roller cam actuated directional control valves

View all
Quantity
Description
Specifications
Downloads
Related products

Description

DSR3L and DSR3H are spools directional valves, roller cam actuated, for subplate mounting. LIGHT (short) and HEAVY DUTY (long) versions are available with 4-ports design, 2 positions with spring return. Double roller cam mechanism is available for DSR3L. This type of valve is suitable for hydraulic stroke-end for cylinders, speed selectors (not compensated), hydraulic safety devices, directional control of hydraulic axes.

Key Features

• Dual lever manual control • Easy panel mounting • High strength body

Downloads

Datasheet_DSR3.pdf

pdf
Download

Specifications

Mounting Interface
Cartridge type – manifold mount
Max Operating Pressure
350 bar
Rated Flow
Up to 25 l/min
Spool Configuration
2- or 3-position
Valve Type
Directional control
Coil Voltage
12VDC to 230VAC
Manual override
Knob
Fluid Viscosity
10–400 cSt
Seals
NBR standard, FKM optional
Cavity Type
ISO 7789
