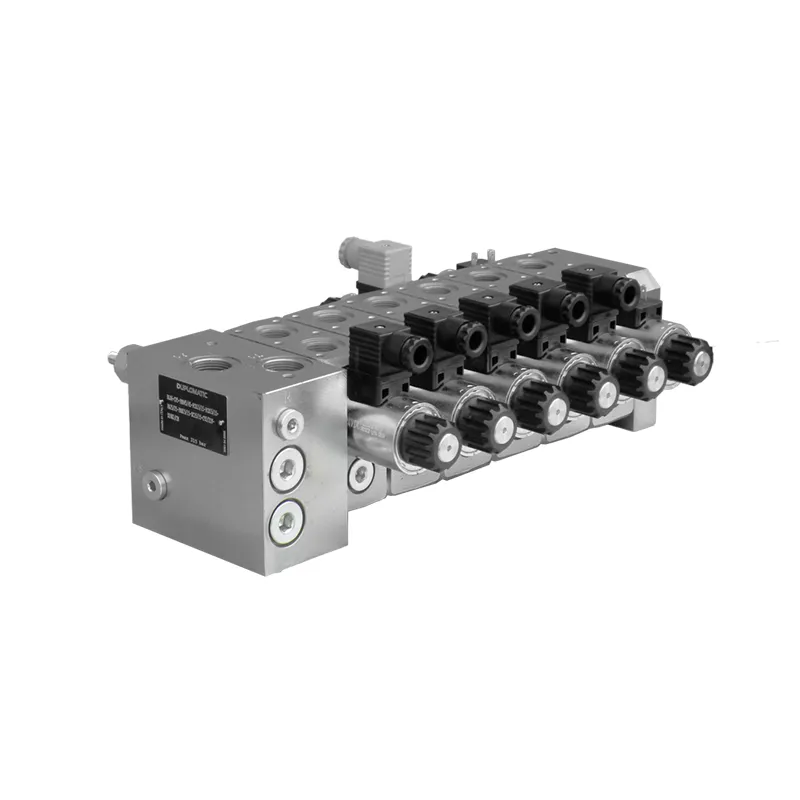

Duplomatic Proportional Stackable Valve, With Load-Sensing Compensator, Type BLS6

Brand :
Duplomatic

Proportional stackable valve assembly with load sensing. Designed for industrial applications where precision and modularity are key. Part of Duplomatic's advanced hydraulic solutions.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The BLS6 is a stackable valve assembly. It can be assembled with up to 8 working sections (proportional and solenoid directional valves together). Each working section is equipped with a meter-in compensator that keeps the flow costant, regardless from load variations. Sections with pressure compensator are not influenced in any way by other operated functions, provided that sufficient pump capacity is available. In order to work correctly, the sum of the flows required at the same time must not overcome the 90% of the inlet flow. A and B working ports are threaded 1/2” BSPP. P and T ports of the inlet plate are 3/4” BSPP threaded. The lever override is available as option.

Key Features

• Stackable valve assembly with proportional and solenoid sections • Integrated load-sensing compensator for constant flow • Independent section operation unaffected by load variation • Supports up to 8 working sections • A/B ports: 1/2” BSPP, P/T ports: 3/4” BSPP • Max pressure 315 bar, flow up to 120 l/min • Electrically operated with 12V or 24V options • Manual override and different spool types available • Compact and modular for dynamic hydraulic systems • Zinc-nickel plated surface for corrosion protection

Downloads

Datasheet_BLS6.pdf

pdf
Download

Specifications

Maximum Operating Pressure (P, A, B Ports)
315 bar
Maximum Operating Pressure (T Port)
20 bar
Maximum Flow Rate (T Port)
120 l/min
Max Flow (A and B Ports)
45 l/min
Max Flow (P Port)
100 l/min
Ambient temperature range
-20°C to +60°C
Fluid Temperature Range
-20°C to +80°C
Fluid Viscosity Range
10 to 400 cSt
Recommended viscosity
25 cSt
Port Sizes
A & B: 1/2” BSPP, P & T: 3/4” BSPP
Protection degree
IP65/IP67
Surface Treatment
Zinc-nickel coating
