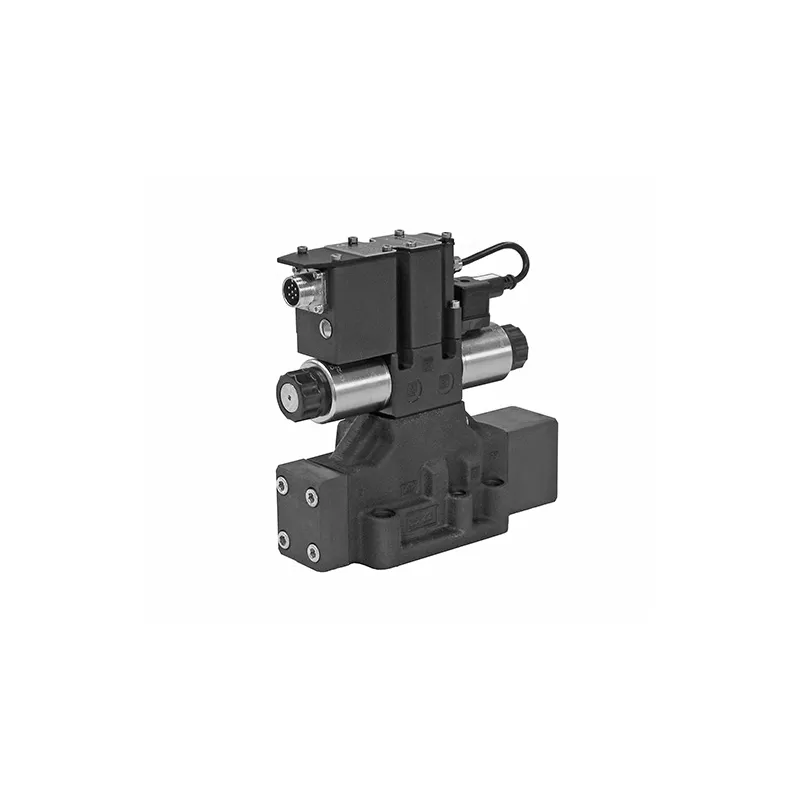

Duplomatic Proportional Directional Valve, Pilot Operated, With On-Board Electronics For Open Loop, Type DSPE*G, DSPE*GL, DSPE*GH

Brand :
Duplomatic

Proportional directional valve, pilot operated, with on-board electronics for open loop

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The DSPE*G, DSPE*GL, and DSPE*GH are proportional directional valves, pilot-operated, with on-board electronics, designed for subplate mounting. Available in sizes from ISO 4401-05 to ISO 4401-10 with oversized ports, these valves are ideal for controlling the position and speed of hydraulic actuators. Key Features: Sizes: The DSPEG, DSPEGL, and DSPE*GH valves are available in several sizes, according to ISO 4401-05, ISO 4401-07, ISO 4401-08, and ISO 4401-10 standards. There are also versions with oversized ports to ensure superior performance. Open Center or Closed Center Spools: Each model is available with either an open center or closed center spool to meet different application needs. Regenerative Circuits: The DSPE7G*, DSPE8G*, and DSPE10G* valves support spools for regenerative circuits, offering energy efficiency in specific applications. Pilot Supply Options: The valves can be supplied with internal pilot, internal with integrated pressure reducing valve, or external pilot, providing flexibility in installation. On-Board Electronics Options: G Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control. GL Version: Compact electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity. GH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs. The DSPE*G, DSPE*GL, and DSPE*GH valves are ideal for a wide range of industrial hydraulic applications, offering precision, reliability, and advanced electronic control capabilities.

Downloads

Datasheet_DSPE_G_ DSPE_GL_ DSPE_GH.pdf

pdf
Download

Specifications

Mounting Standard
ISO 4401-05
Max Operating Pressure
320 bar (P-A-B); 210 bar (T port)
Nominal Flow
30–60 l/min depending on spool
Control Type
Direct operated proportional control
Response Time
Optimized for performance with external amplifier
Hysteresis
< 6% of Q max with PWM 100 Hz
Repeatability
< ±1.5%
Weight
4.4 kg (single solenoid), 5.9 kg (double solenoid)
Contamination Level
ISO 4406 Class 18/16/13
Spool Types
C (closed), A (open), Z (zero lap), R (regenerative)
Solenoid Type
Wet armature, low hysteresis design
Mounting position
Any position, preferably horizontal
Override Option
Knob and boot-protected screw type available
