Duplomatic Proportional Directional Valve, Direct Operated, With On-Board Electronics For Open Loop, Type DSE5G*

Brand :
Duplomatic

Proportional directional valve, direct operated, with on-board electronics for open loop

View all
Quantity
Description
Specifications
Downloads
Related products

Description

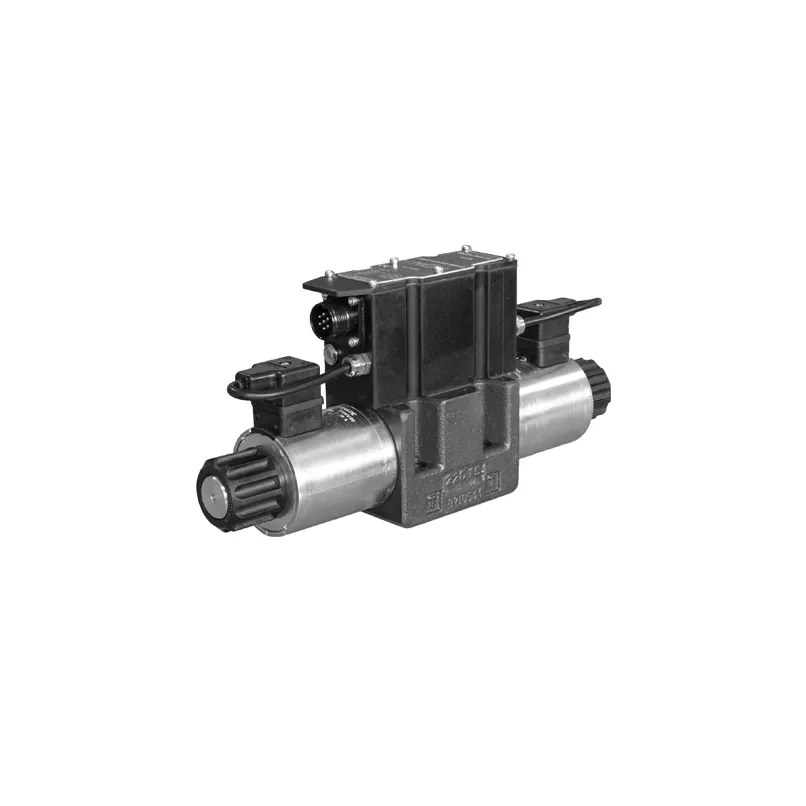

DSE5G, DSE5GL and DSE5GH are proportional directional valves, direct operated, with on-board electronics, for subplate mounting. They are used to control the position and speed of the hydraulic actuators. On-Board Electronics Options for open loop: G Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control. GL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity. GH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.

Downloads

Datasheet_DSE5G_.pdf

pdf
Download

Specifications

Integrated Electronics
Onboard driver with analog or fieldbus interface
Max Operating Pressure
320 bar (P-A-B); 210 bar (T port)
Flow Capacity
8 l/min at Δp 10 bar
Command Signals
±10 V, 4–20 mA, IO-Link, CANopen
Electrical Protection
IP65 / IP67 (with proper mating connector)
Mounting surface
ISO 4401-03
Duty Cycle
100% continuous
Power Supply
24 V DC (19–30 V), 40 VA max
Monitoring & Feedback
Solenoid current monitor, LIN-bus diagnostics
Spool Center Position
Closed center (C), Open center (A), Zero Overlap (Z)
Diagnostics Interface
LIN-Bus via M12 connector, LED indicators
Feedback System
Open-loop control with current monitoring
Spool Flow Ranges
8 l/min with optimized tuning
