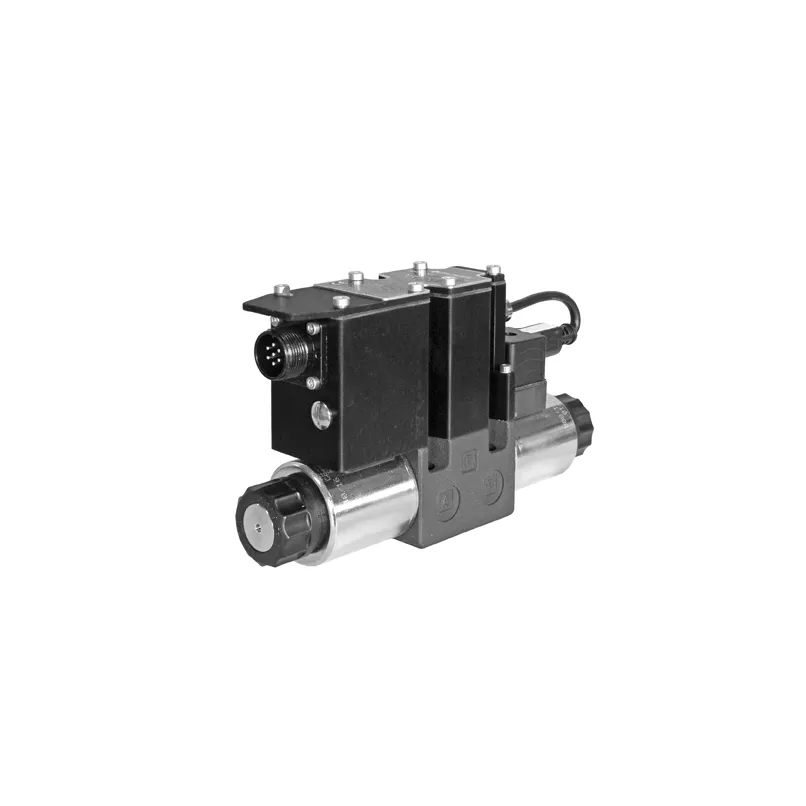

Duplomatic Proportional Directional Valve, Direct Operated, With On-Board Electronics For Open Loop, Type DSE3G*

Brand :
Duplomatic

Proportional directional valve, direct operated, with on-board electronics for open loop

View all
Quantity
Description
Specifications
Downloads
Related products

Description

DSE3G, DSE3GL and DSE3GH are proportional directional valves, direct operated, with on-board electronics, for subplate mounting. They are used to control the position and speed of the hydraulic actuators. On-Board Electronics Options for open loop: G Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control. GL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity. GH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.

Downloads

Datasheet_DSE3G_.pdf

pdf
Download

Specifications

Valve Type
Proportional Directional Valve with Digital Integrated Electronics
Electronics Type
Standard, Compact, or Fieldbus (Open-loop or Closed-loop)
Control Signals
±10V or 4–20 mA (E0/E1); IO-Link; CAN Open
Nominal Flow
1–26 l/min
Housing
Zinc-nickel coated for corrosion resistance
Response Features
Software adjustable parameters with digital tuning
Protection Class
IP65/IP67 with proper installation
Duty Rating
Continuous
Mass
1.9 kg (single), 2.4 kg (double)
Temperature Tolerance
-20°C to +60°C ambient
Command Signal Options
±10V, 4–20 mA, CANopen, IO-Link
Configuration Interface
Integrated USB and Fieldbus communication
Software Adjustable Parameters
Ramp time, dither frequency, gain tuning
Diagnostics
LED status indicators, LIN-bus error feedback
Fail-Safe Mode
Active shut-off in event of signal or voltage failure
Electrical Protection
Overvoltage, reverse polarity, short-circuit
Operating Voltage Range
24 V DC ± 25%, ripple max 3 Vpp
