Duplomatic Proportional Directional Valve, Direct Operated, With On-Board Electronics And Feedback, Type DSE3J*

Brand :
Duplomatic

Proportional directional valve, direct operated, with on-board electronics and feedback

View all
Quantity
Description
Specifications
Downloads
Related products

Description

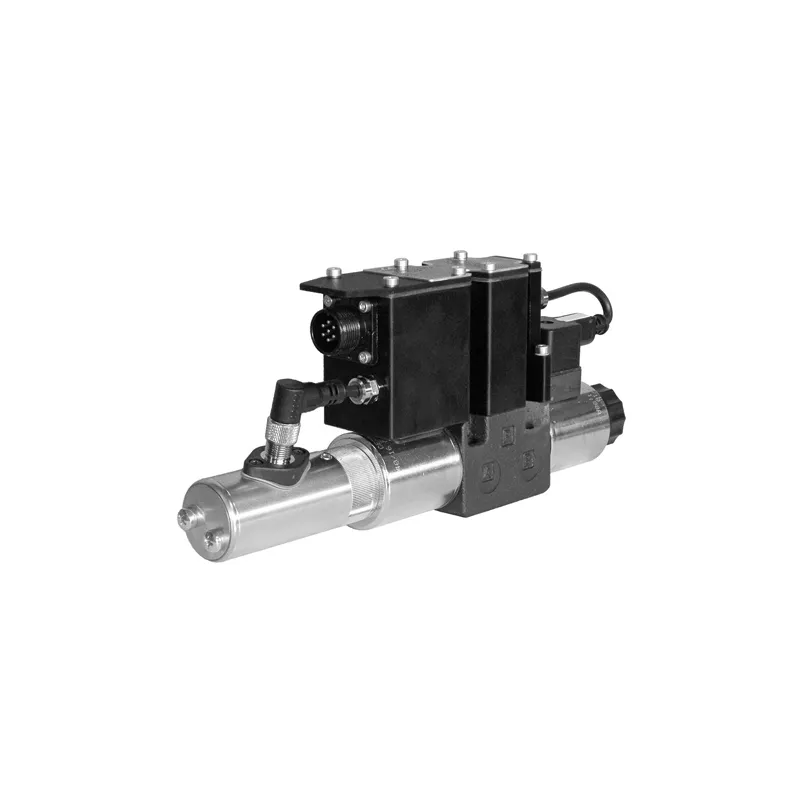

DSE3J, DSE3JL and DSE3JH are proportional directional valves, direct operated, with on-board electronics and position feedback, for subplate mounting. They are used to control the position and speed of the hydraulic actuators. On-Board Electronics Options for pressure closed loop: J Version: Standard electronics with an analogue interface, with current or voltage reference signal, and a 6-pin + PE connection. Ideal for traditional applications with direct control. JL Version: Compact and cost-effective electronics with Io-Link, Can-Open, or analog interface and a 5-pin M12 connection. Perfect for applications requiring advanced connectivity. JH Version: Supports fieldbus communication with EtherCAT, Ethernet/IP, and Profinet interfaces, using an 11-pin M12 connection. Optimal for advanced industrial applications with complex communication needs.

Downloads

Datasheet_DSE3J_.pdf

pdf
Download

Specifications

Valve Type
Proportional Directional Valve with Feedback and Integrated Electronics
Feedback Loop
Closed-loop position control
Nominal Flow Range
1–30 l/min
Spool Options
Closed, Open, Zero Overlap (C/A/Z)
Diagnostics
Via LIN-bus and Fieldbus protocols
Fail-safe Feature
Available for Z spools
Electronics Interface
6-pin or 11-pin + PE for Fieldbus/Analog
Response Performance
Hysteresis <0.2%, Threshold <0.1%
Mass
2.2 kg (single), 2.7 kg (double)
Power Specs
24 VDC, ripple max 3 Vpp, 25 VA consumption
Feedback Type
Spool position with integrated LVDT sensor
Control Interfaces
6-pin or 11-pin + PE for Analog and Fieldbus
Programmable Functions
Ramp time, deadband compensation, threshold tuning
Monitoring Features
Spool alignment error, overtemperature, undervoltage
Reproducibility
< 0.5% of nominal flow
Compliance Standards
CE marked, EMC directive compliant
Power Consumption
25 VA typical at 24 V DC
